DC/AC inverter
DF1750 / DF1755 transformer-type inverters and inverter-chargers
Transformer-type DC/AC inverters and inverter-chargers that convert 12V DC into mains-type AC, with input current limit, over-voltage and output current limit protection.
10Catalogue models
1989Goldsource founded
3Exterior 3D models
Reconstructed exterior
Every side,
square on.

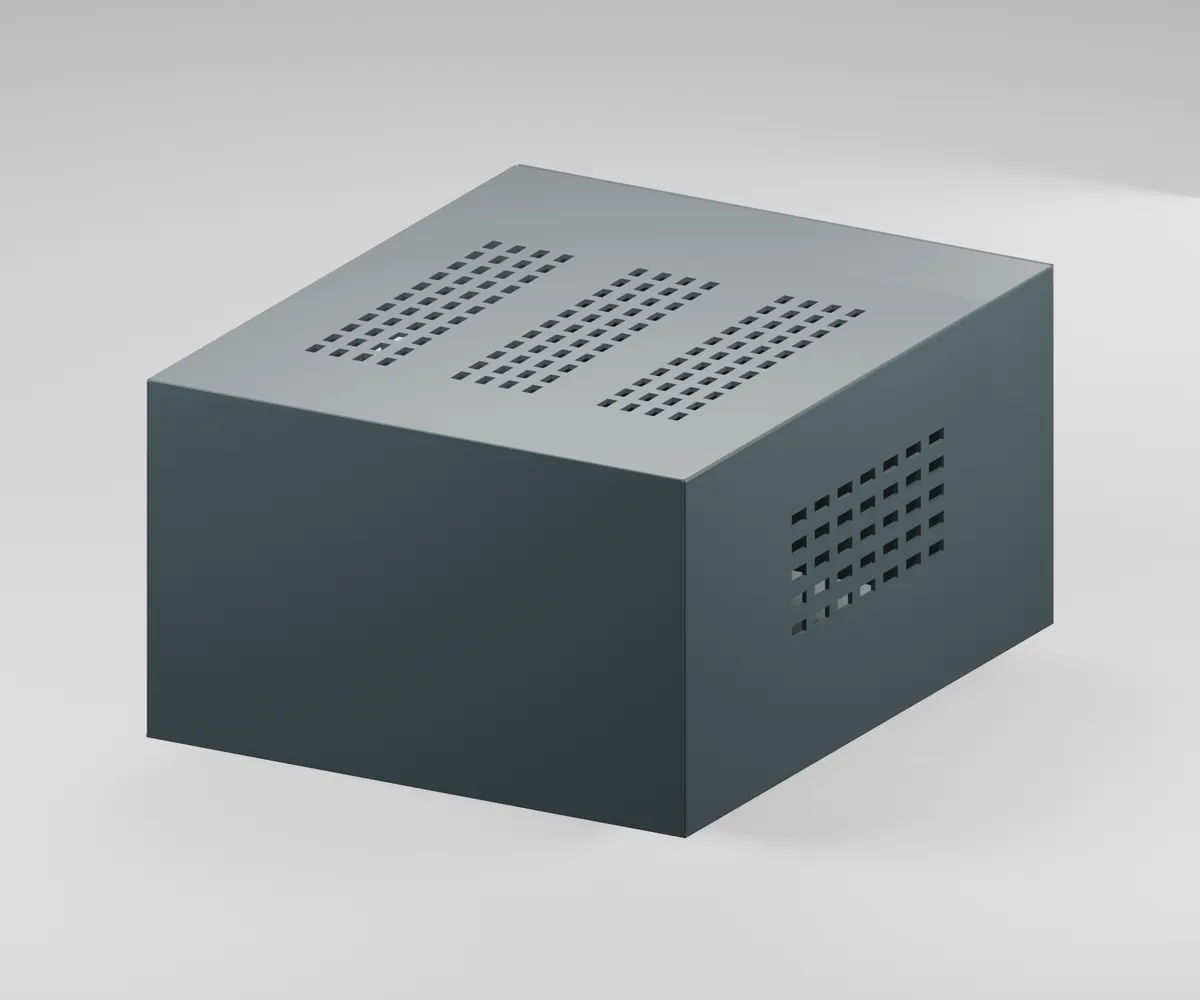

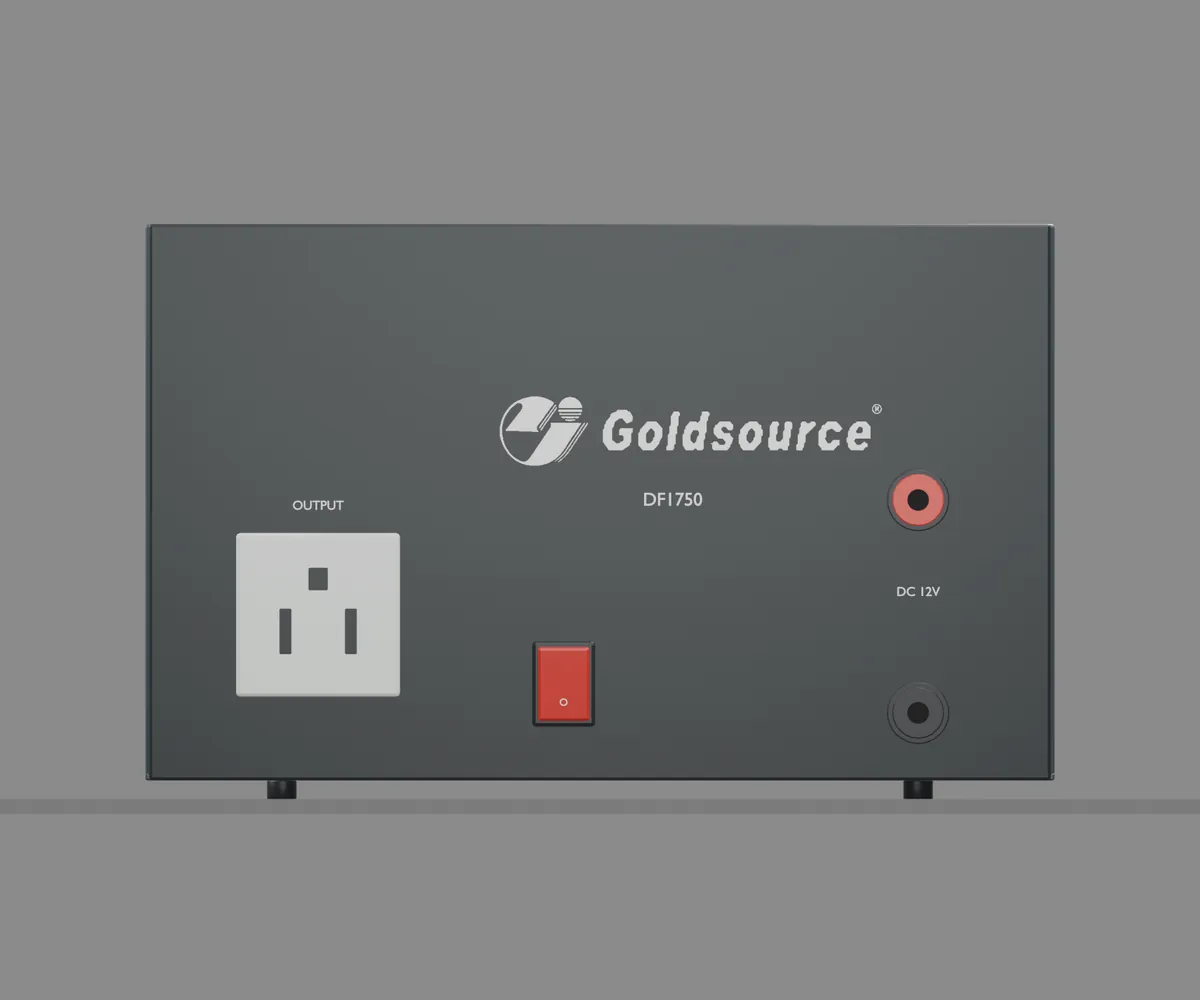

Illustrative renders reconstructed from catalogue photographs; dimensions are estimated. Appearance and configuration may vary by version.
Interactive exterior
DF1750,
in the round.
Illustrative exterior model reconstructed from catalogue photographs. Appearance and configuration may vary by version.
Drag to rotate · Scroll to zoom
Illustrative exterior model. Appearance and configuration may vary by version; check against the current product specification.
Historical catalogue record
What the catalogue says.
What to confirm.
- Product category
- DC/AC inverter
- Series
- DF1750 / DF1755
- Catalogue models
- 10
- Source
- Company website archive (2014)
- Source
- DIYTrade listing (2025)
- Current specifications & availability
- Confirm by enquiry
Features as printed in the catalogue
- Input voltage: 12V DC
- Output voltage: AC 220V 50Hz or 110V 60Hz
- Input current limit protection or over-voltage protection
- Output current limit protection
- Audio alarm function
- DF1754 / DF1757 / DF1758 / DF1755: DC/AC inverter with battery charger
Catalogue values are historical reference information, not confirmed current specifications. Confirm the exact model, ratings, input range and certification status before ordering.
DF1750 / DF1755 catalogue models.
| Model | Surge power | Continuous power | External package size | Net / gross weight | Pieces per carton |
|---|---|---|---|---|---|
| DF1750 | 500W | 400W | 36.0 × 31.0 × 20.0 cm | 12 / 13 kg | 1 |
| DF1750B | — | 500W | 32.5 × 31.0 × 20.0 cm | 11 / 12 kg | 1 |
| DF1751 | — | 1000W | 41.5 × 37.5 × 23.5 cm | 19 / 20 kg | 1 |
| DF1752 | — | 200W | 29.5 × 27.5 × 18.5 cm | 7 / 8 kg | 1 |
| DF1754 | — | 1200W | 41.5 × 37.5 × 23.5 cm | 22 / 23 kg | 1 |
| DF1755 | 700W | 550W | 36.0 × 31.0 × 20.0 cm | 12 / 13 kg | 1 |
| DF1757 | — | 750W | 41.5 × 37.5 × 23.5 cm | 17 / 18 kg | 1 |
| DF1758 | — | 1000W | 41.5 × 37.5 × 23.5 cm | 19 / 20 kg | 1 |
| DF1759 | — | — | — | — | — |
| DF1759-500MKII | — | — | — | — | — |
Sizes are external package sizes in cm; weights in kg; quantities are pieces per carton.
