Solar charge controller
DF13xxS PWM solar power controllers
Solar charge controllers with intelligent chip control, working-status display and multiple protections for charging and discharging in solar power systems.
4Catalogue models
57–58Catalogue pages
1989Goldsource founded
1Exterior 3D models

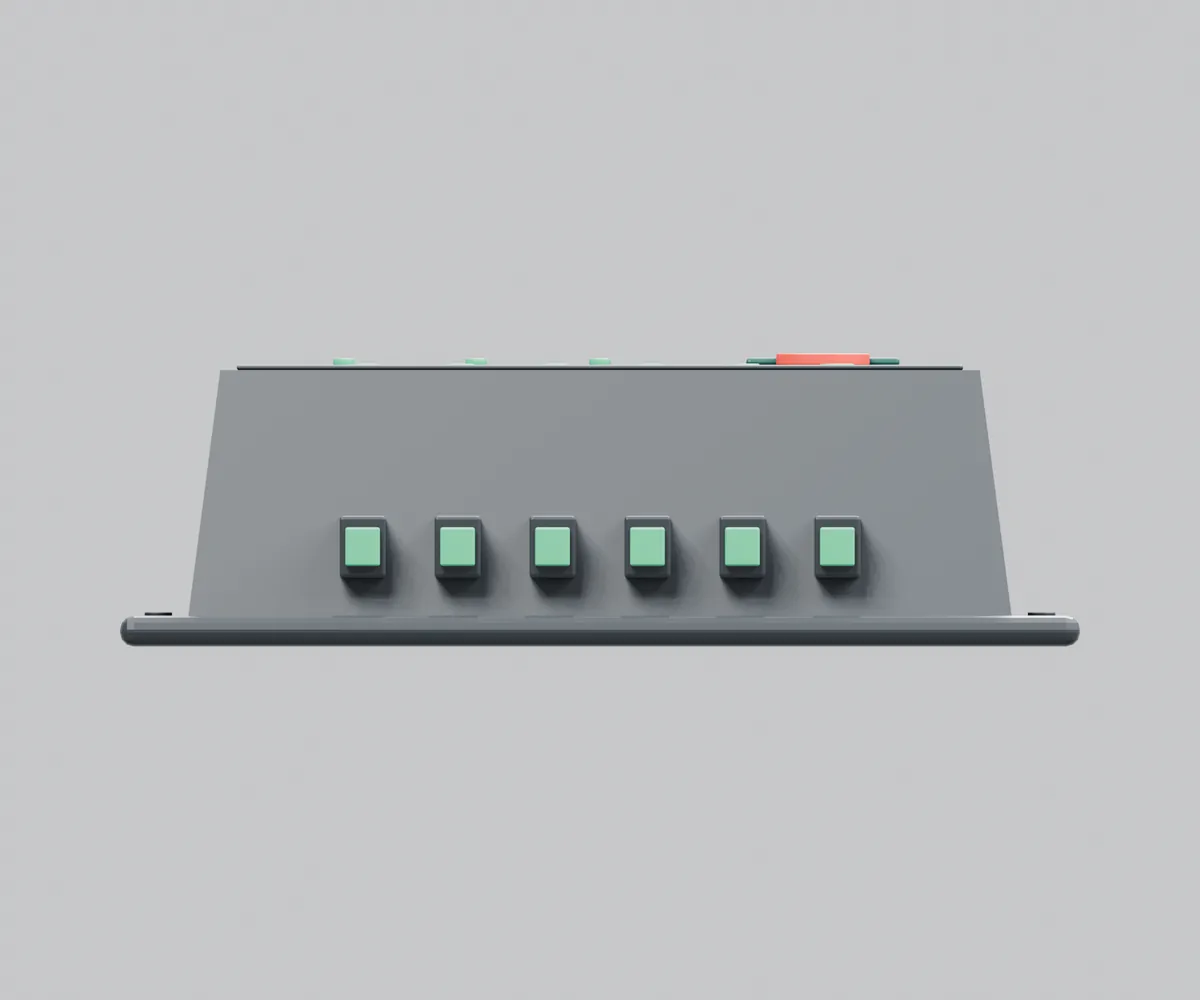

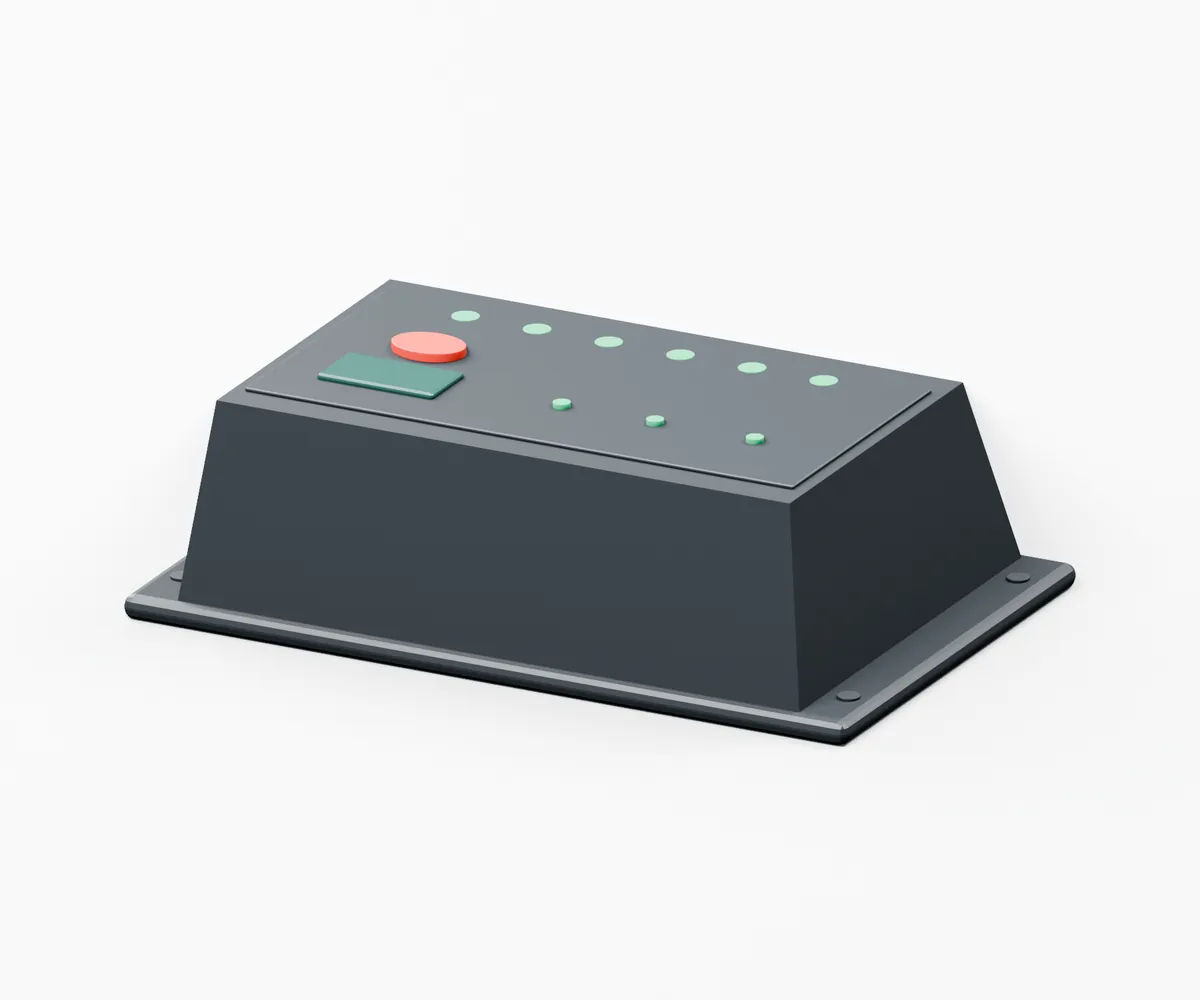

Reconstructed exterior
Every side,
square on.
Illustrative renders reconstructed from catalogue photographs; dimensions are estimated. Appearance and configuration may vary by version.
Interactive exterior
DF1305S,
in the round.
Illustrative exterior model reconstructed from catalogue photographs. Appearance and configuration may vary by version.
Drag to rotate · Scroll to zoom
Illustrative exterior model. Appearance and configuration may vary by version; check against the current product specification.
Historical catalogue record
What the catalogue says.
What to confirm.
- Product category
- Solar charge controller
- Series
- DF13xxS
- Catalogue models
- 4
- Source
- Catalogue PDF pages 57–58
- Current specifications & availability
- Confirm by enquiry
Features as printed in the catalogue
- System voltage: 12V / 24V automatic identification
- Overload protection, short-circuit protection
- Over-voltage protection, under-voltage protection
- Over-discharge protection
- Control mode: PWM pulse width modulation
Catalogue values are historical reference information, not confirmed current specifications. Confirm the exact model, ratings, input range and certification status before ordering.
DF13xxS catalogue models.
| Model | Voltage | Output current | External package size | Net weight | Gross weight | Pieces per carton |
|---|---|---|---|---|---|---|
| DF1305S | 12V / 24V | 5A | 40.5 × 25.0 × 32.0 cm | 8 kg | 10.0 kg | 60 |
| DF1310S | 12V / 24V | 10A | 40.5 × 25.0 × 32.0 cm | 9.5 kg | 11.5 kg | 60 |
| DF1320S | 12V / 24V | 20A | 40.5 × 25.0 × 32.0 cm | 10.0 kg | 12.0 kg | 60 |
| DF1330S | 12V / 24V | 30A | 50.5 × 36.0 × 18.5 cm | 8 kg | 12.0 kg | 50 |
Sizes are external package sizes in cm; weights in kg; quantities are pieces per carton.
