DC/AC inverter
DF1753 DC/AC inverters
DC/AC inverters that convert 12V or 24V DC from a vehicle or battery into mains-type AC using high-frequency switching, with overload, low-voltage alarm and overheat protection.
10Catalogue models
53–54Catalogue pages
1989Goldsource founded
4Exterior 3D models

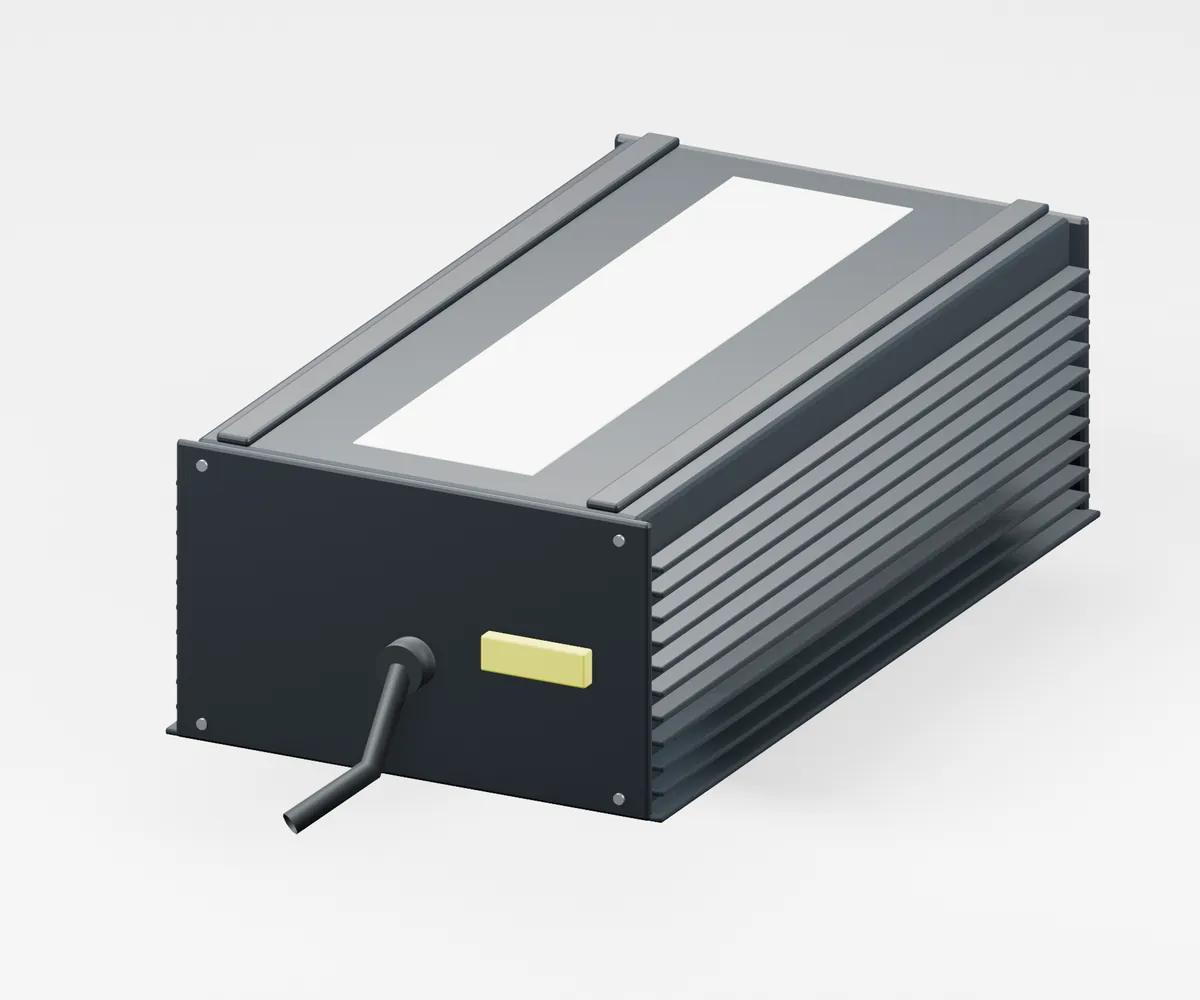

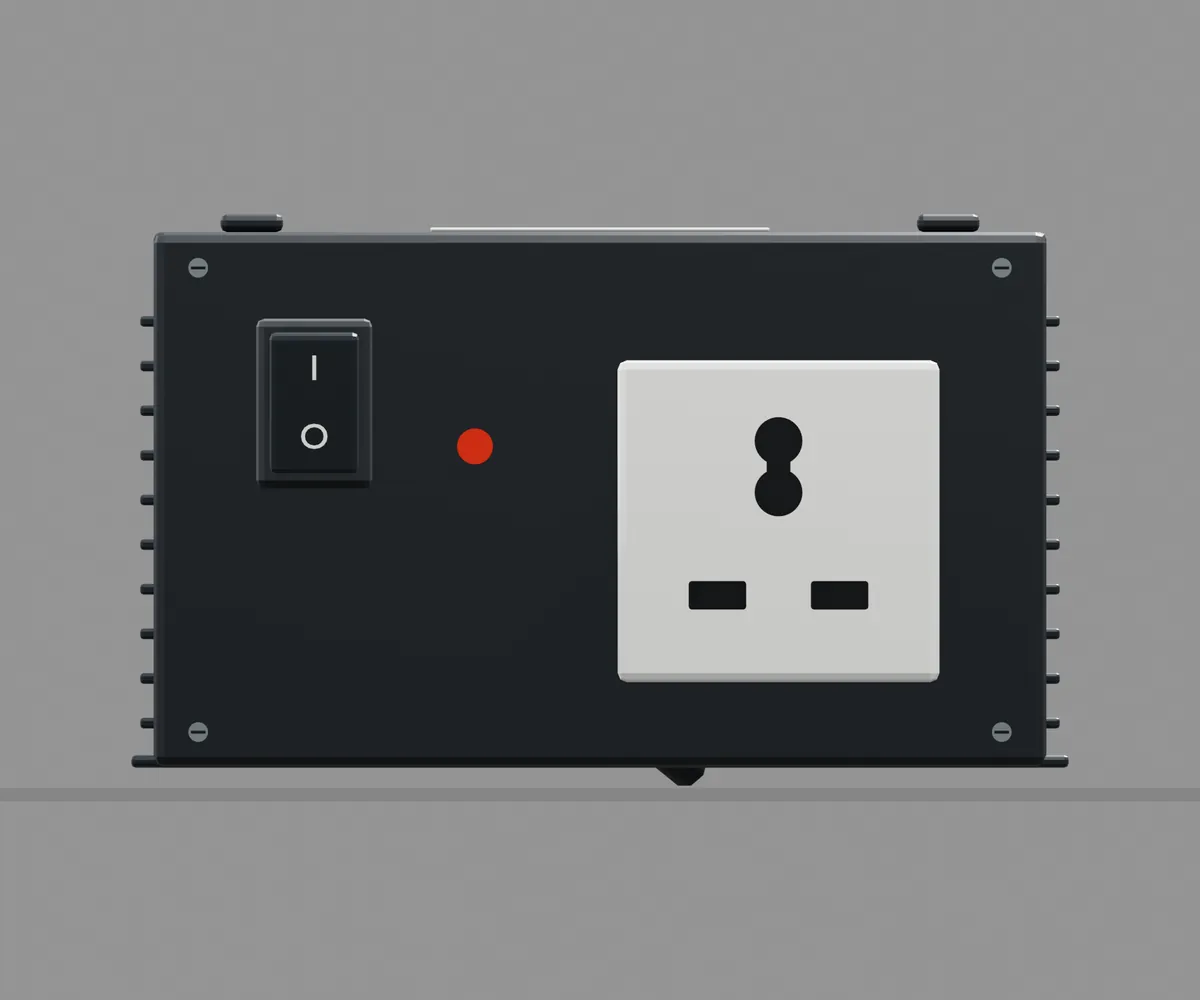

Reconstructed exterior
Every side,
square on.
Illustrative renders reconstructed from catalogue photographs; dimensions are estimated. Appearance and configuration may vary by version.
Interactive exterior
DF1753-150,
in the round.
Illustrative exterior model reconstructed from catalogue photographs. Appearance and configuration may vary by version.
Drag to rotate · Scroll to zoom
Illustrative exterior model. Appearance and configuration may vary by version; check against the current product specification.
Historical catalogue record
What the catalogue says.
What to confirm.
- Product category
- DC/AC inverter
- Series
- DF1753
- Catalogue models
- 10
- Source
- Catalogue PDF pages 53–54
- Source
- Company website archive (2014)
- Source
- DIYTrade listing (2025)
- Current specifications & availability
- Confirm by enquiry
Features as printed in the catalogue
- Input voltage: 12V DC or 24V DC
- Output voltage: AC 220V 50Hz or 110V 60Hz
- With low / over-voltage protection
- Output overload protection and alarm function
- Overheat protection
Catalogue values are historical reference information, not confirmed current specifications. Confirm the exact model, ratings, input range and certification status before ordering.
DF1753 catalogue models.
| Model | Surge power | Peak power | Continuous power | External package size | Net / gross weight | Pieces per carton |
|---|---|---|---|---|---|---|
| DF1753-150 | 200W | 180W | 150W | 40.5 × 29.5 × 37.5 cm | 15 / 17 kg | 20 |
| DF1753-200 | 250W | 230W | 200W | 40.5 × 29.5 × 37.5 cm | 16 / 18 kg | 20 |
| DF1753-300 | 400W | 360W | 300W | 47.5 × 30.0 × 30.5 cm | 12.5 / 14.5 kg | 12 |
| DF1753-500 | 700W | 600W | 500W | 47.5 × 35.0 × 30.5 cm | 15 / 17 kg | 12 |
| DF1753-1000 | 1400W | 1200W | 1000W | 51.5 × 32.5 × 31.0 cm | 10 / 11 kg | 2 |
| DF1753-1500 | 2000W | 1700W | 1500W | 51.5 × 32.5 × 31.0 cm | 12 / 13 kg | 2 |
| DF1753-2000 | 2000W | 1900W | 1800W | 56.5 × 51.5 × 33.0 cm | 12 / 13 kg | 2 |
| DF1753-3000 | 3000W | 2900W | 2800W | 51.5 × 30.0 × 18.5 cm | 6.5 / 7.5 kg | 1 |
| DF1753-250N | 400W | 250W | 200W | 40.5 × 37.5 × 27.0 cm | 19 / 21 kg | 30 |
| DF1753-300N | 500W | 300W | 250W | 40.5 × 37.5 × 27.0 cm | 19.5 / 21.5 kg | 30 |
Sizes are external package sizes in cm; weights in kg; quantities are pieces per carton.
