Solar charge controller
DF12xx solar power controllers
Solar charge controllers with intelligent chip control, working-status display and multiple protections for charging and discharging in solar power systems.
7Catalogue models
55–56Catalogue pages
1989Goldsource founded
3Exterior 3D models
Reconstructed exterior
Every side,
square on.

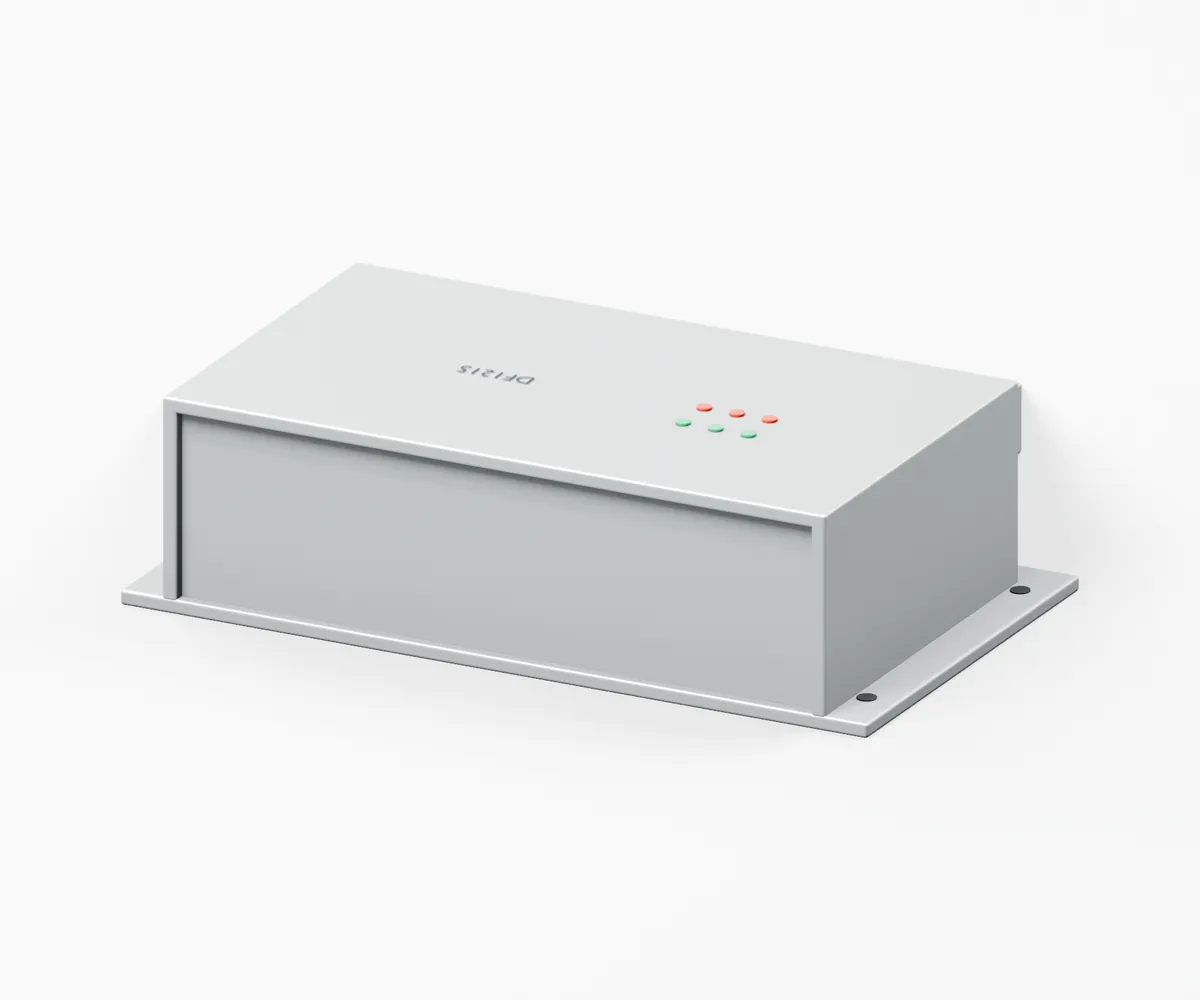

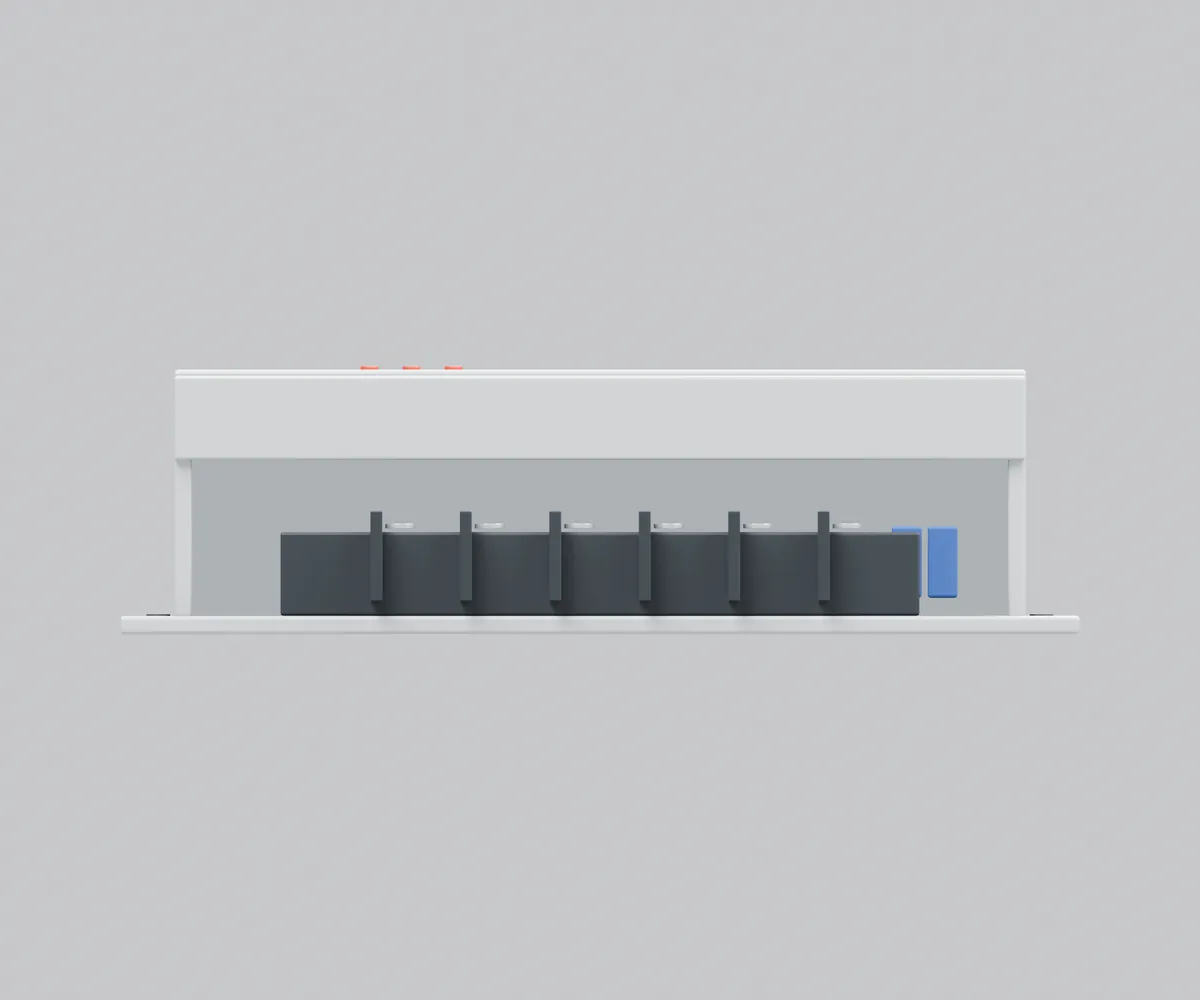

Illustrative renders reconstructed from catalogue photographs; dimensions are estimated. Appearance and configuration may vary by version.
Interactive exterior
DF1215,
in the round.
Illustrative exterior model reconstructed from catalogue photographs. Appearance and configuration may vary by version.
Drag to rotate · Scroll to zoom
Illustrative exterior model. Appearance and configuration may vary by version; check against the current product specification.
Historical catalogue record
What the catalogue says.
What to confirm.
- Product category
- Solar charge controller
- Series
- DF12xx
- Catalogue models
- 7
- Source
- Catalogue PDF pages 55–56
- Source
- DIYTrade listing (2025)
- Current specifications & availability
- Confirm by enquiry
Features as printed in the catalogue
- Output voltage: 13.8V
- Polarity counter-protection
- Overload and short-circuit protection
- Over-charge and over-discharge protection
- Solar module polarity counter-protection
- Current flow-backwards protection
- DF1205S / DF1210S / DF1215S listed on DIYTrade
Catalogue values are historical reference information, not confirmed current specifications. Confirm the exact model, ratings, input range and certification status before ordering.
DF12xx catalogue models.
| Model | Voltage | Output current | External package size | Net weight | Gross weight | Pieces per carton |
|---|---|---|---|---|---|---|
| DF1205S | — | 5A | — | — | — | — |
| DF1210S | — | 10A | — | — | — | — |
| DF1215S | — | 15A | — | — | — | — |
| DF1215 | 13.8V | 15A | 49.5 × 35.5 × 24.0 cm | 11.0 kg | 13.0 kg | 40 |
| DF1220 | 13.8V | 20A | 65.0 × 21.5 × 27.5 cm | 12.5 kg | 14.5 kg | 25 |
| DF1230 | 13.8V | 30A | 65.0 × 21.5 × 27.5 cm | 13.0 kg | 15.0 kg | 25 |
| DF1250 | 13.8V | 50A | 50.0 × 37.0 × 31.0 cm | 14.5 kg | 16.0 kg | 12 |
Sizes are external package sizes in cm; weights in kg; quantities are pieces per carton.
