Step-up / step-down transformer
BON multi-voltage transformers
Multi-voltage transformers with selectable input and output taps for equipment whose rated voltage differs from the local mains voltage.
7Catalogue models
100W – 3,000WCatalogue power range
35–36Catalogue pages
1989Goldsource founded
1Exterior 3D models
Reconstructed exterior
Every side,
square on.
Illustrative renders reconstructed from catalogue photographs; dimensions are estimated. Appearance and configuration may vary by version.
Interactive exterior

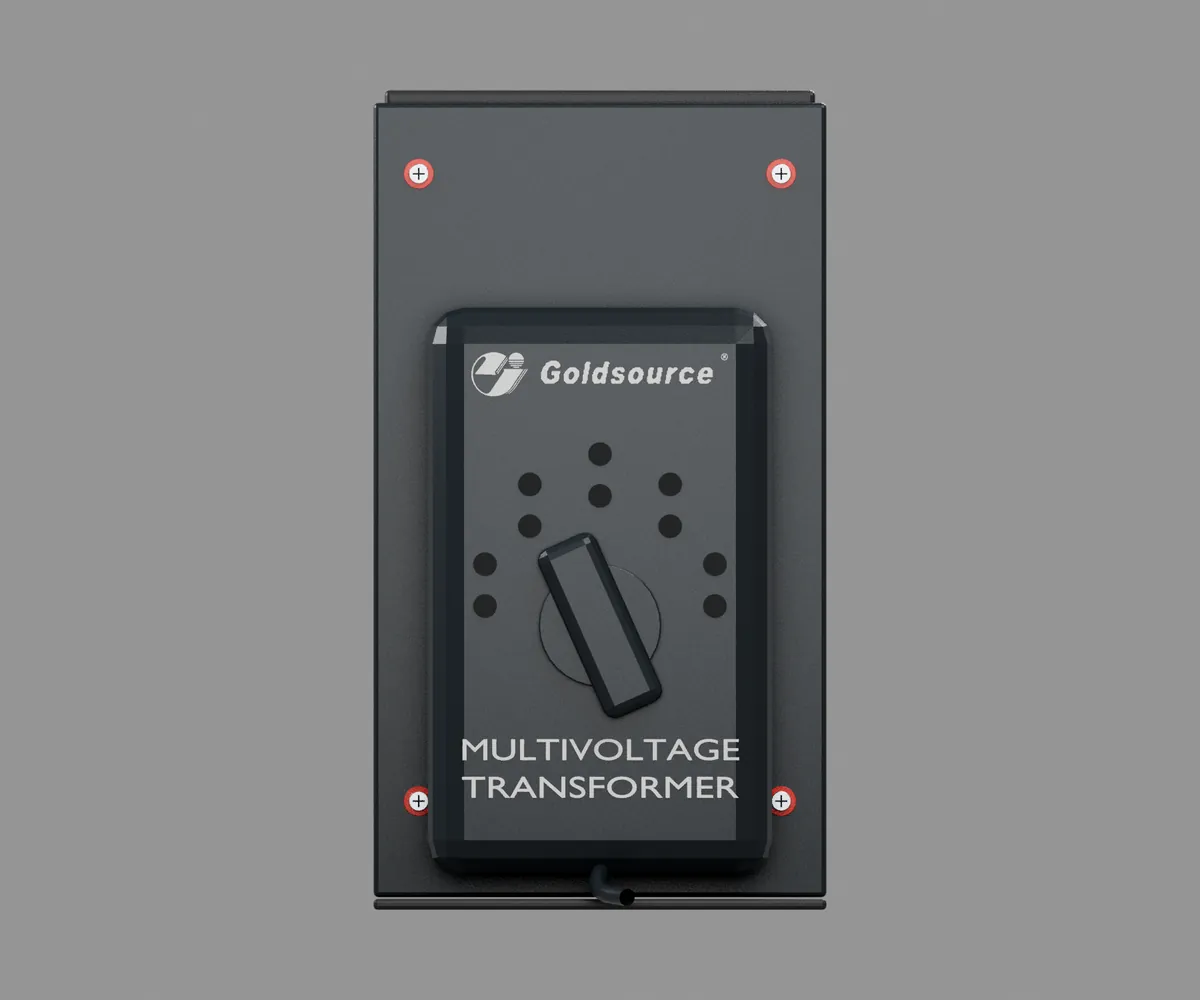

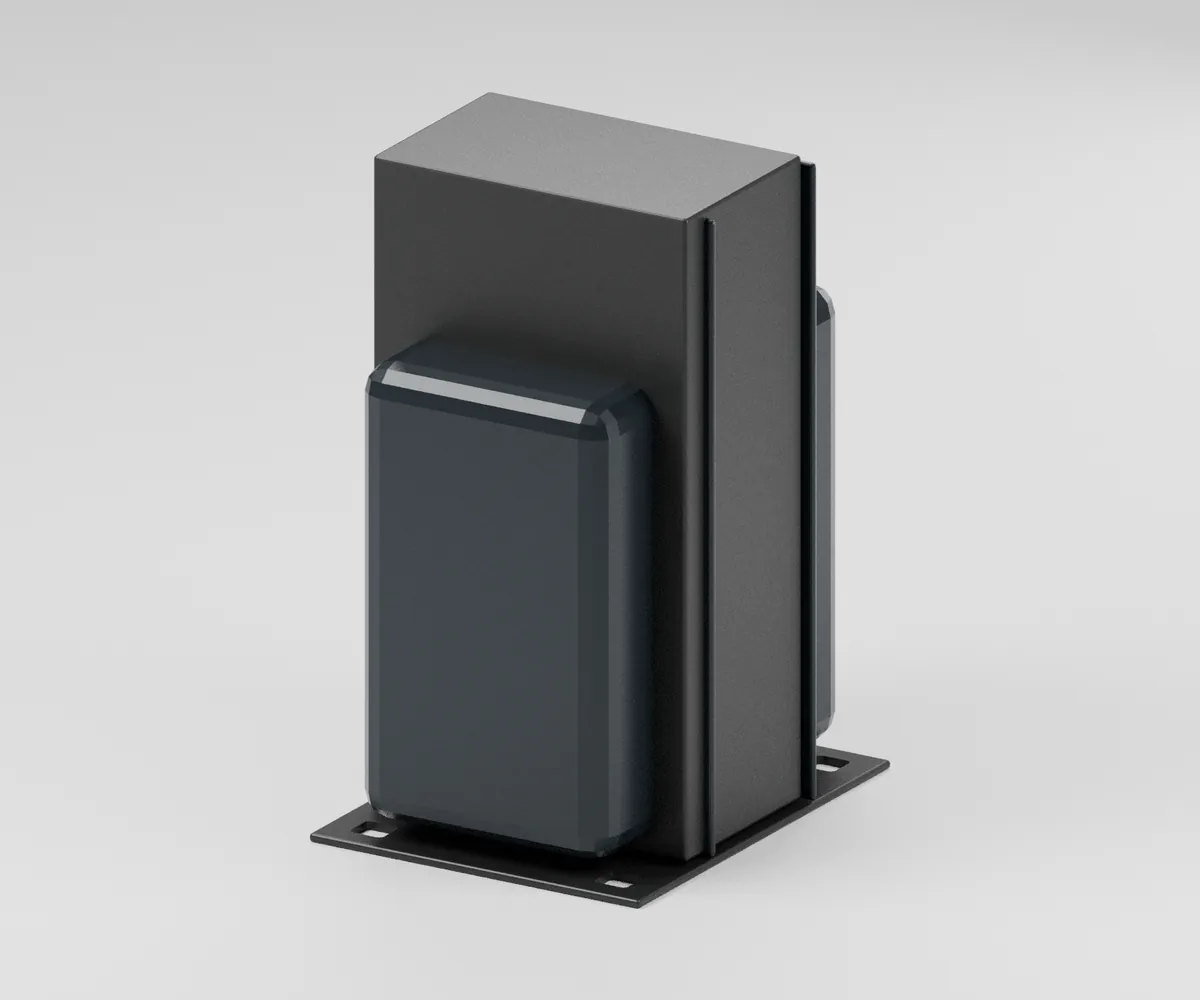

BON-300,
in the round.
Illustrative exterior model reconstructed from catalogue photographs. Appearance and configuration may vary by version.
Drag to rotate · Scroll to zoom
Illustrative exterior model. Appearance and configuration may vary by version; check against the current product specification.
Historical catalogue record
What the catalogue says.
What to confirm.
- Product category
- Step-up / step-down transformer
- Series
- BON
- Catalogue models
- 7
- Source
- Catalogue PDF pages 35–36
- Source
- DIYTrade listing (2025)
- Current specifications & availability
- Confirm by enquiry
Features as printed in the catalogue
- Input voltage: 90V / 100V / 110V / 125V / 220V
- Output voltage: 90V / 100V / 110V / 125V / 220V
- With fuse protector or with over-current protector
Catalogue values are historical reference information, not confirmed current specifications. Confirm the exact model, ratings, input range and certification status before ordering.
BON catalogue models.
| Model | Rated power | External package size | Net weight | Gross weight | Pieces per carton |
|---|---|---|---|---|---|
| BON-100 | 100W | — | — | — | — |
| BON-300 | 300W | 41.5 × 26.5 × 21.0 cm | 21.0 kg | 23.0 kg | 8 |
| BON-500 | 500W | 35.5 × 26.5 × 21.0 cm | 25.0 kg | 27.0 kg | 8 |
| BON-1000 | 1000W | 46.5 × 24.5 × 22.0 cm | 14.5 kg | 16.0 kg | 2 |
| BON-1500 | 1500W | 46.5 × 25.5 × 22.0 cm | 17.0 kg | 18.5 kg | 2 |
| BON-2000 | 2000W | 46.5 × 27.5 × 22.0 cm | 22.0 kg | 23.5 kg | 2 |
| BON-3000 | 3000W | 46.5 × 29.5 × 22.0 cm | 26.0 kg | 27.5 kg | 2 |
Sizes are external package sizes in cm; weights in kg; quantities are pieces per carton.
