Step-up / step-down transformer
TC-B step-up & step-down transformers with USB
Step-up / step-down AC converters with an additional 5V DC USB output, designed for equipment whose rated voltage differs from the local mains voltage.
12Catalogue models
100W – 10,000WCatalogue power range
31–32Catalogue pages
1989Goldsource founded
1Exterior 3D models

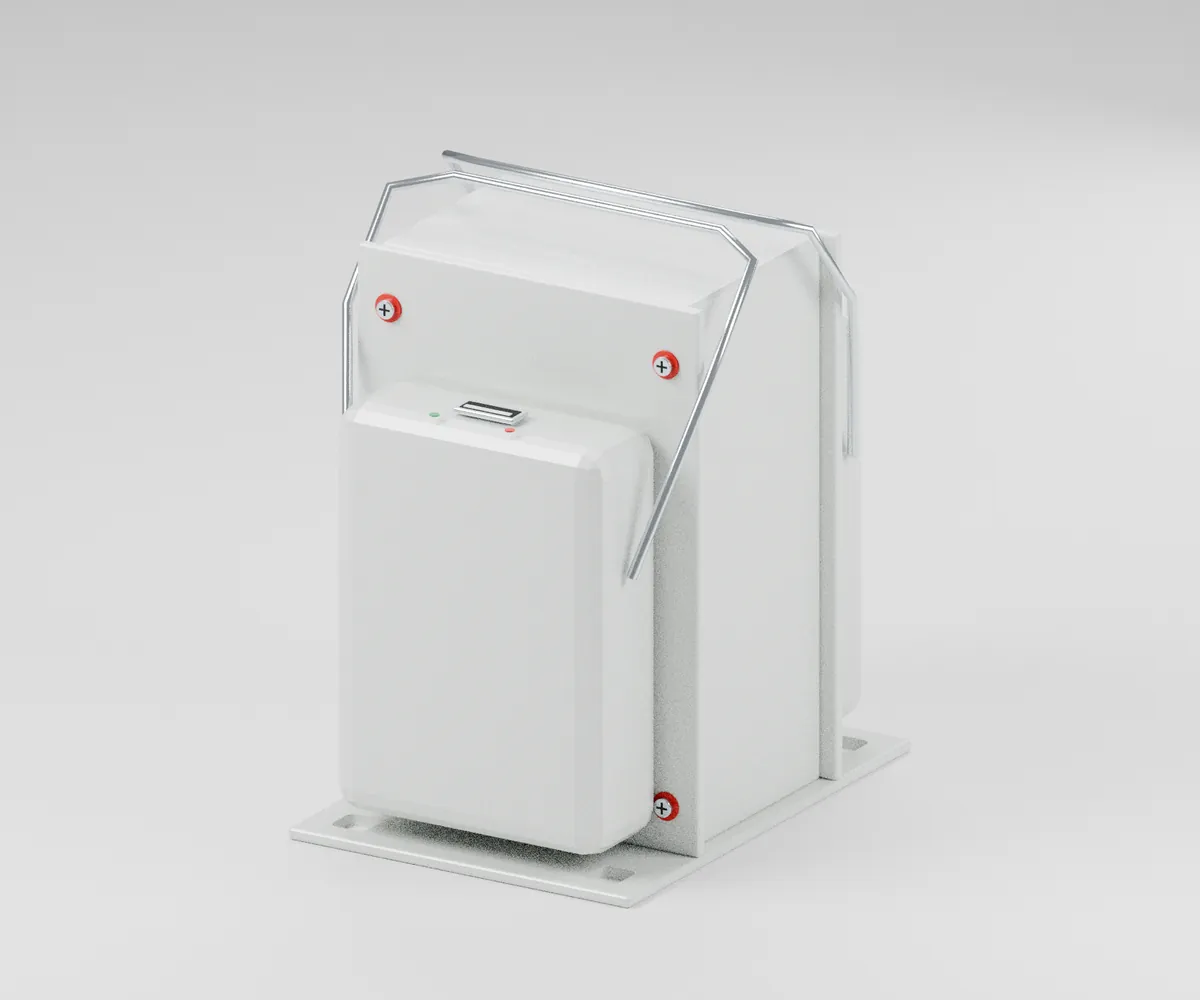

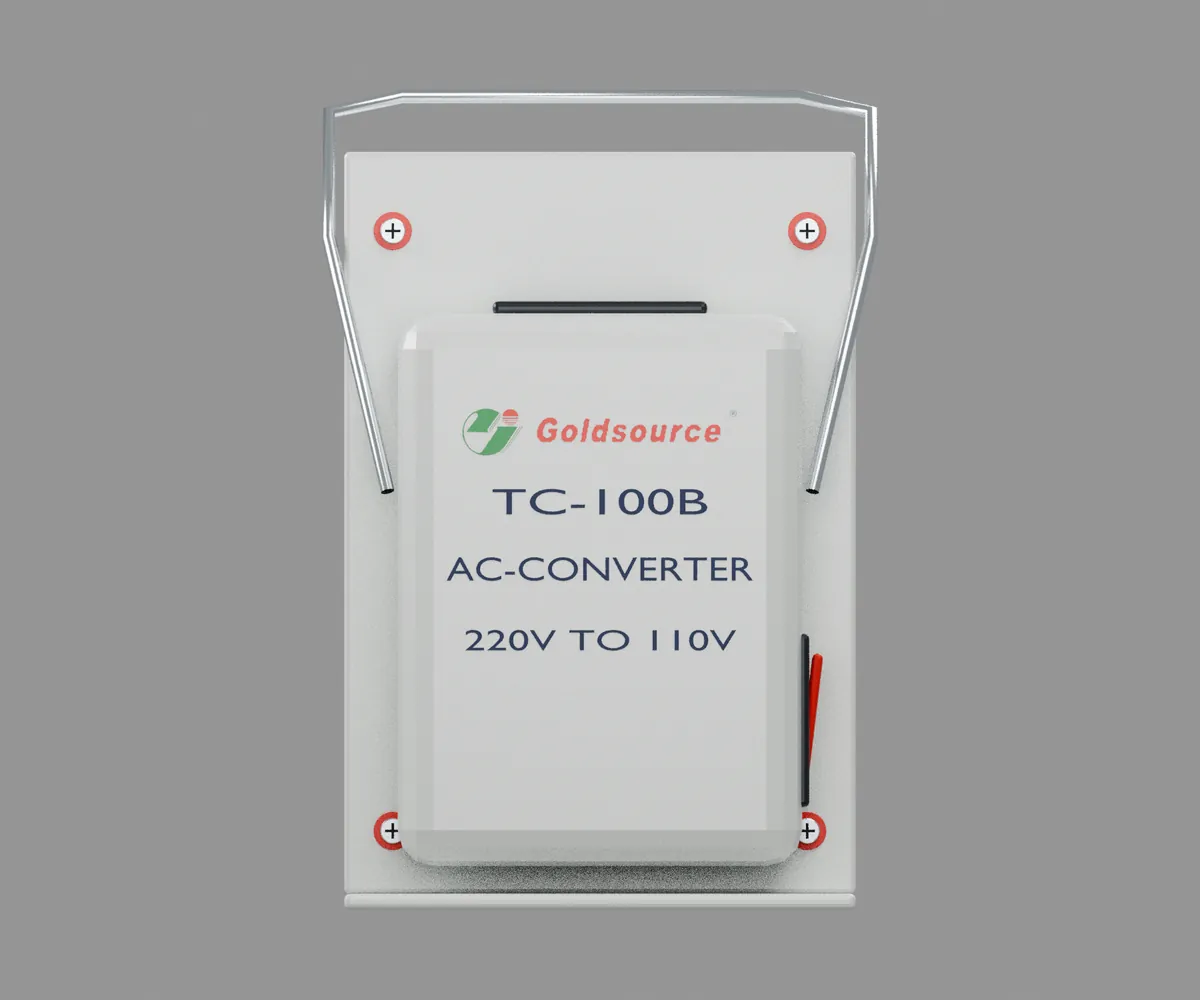

Reconstructed exterior
Every side,
square on.
Illustrative renders reconstructed from catalogue photographs; dimensions are estimated. Appearance and configuration may vary by version.
Interactive exterior
TC-100B,
in the round.
Illustrative exterior model reconstructed from catalogue photographs. Appearance and configuration may vary by version.
Drag to rotate · Scroll to zoom
Illustrative exterior model. Appearance and configuration may vary by version; check against the current product specification.
Historical catalogue record
What the catalogue says.
What to confirm.
- Product category
- Step-up / step-down transformer
- Series
- TC-B
- Catalogue models
- 12
- Source
- Catalogue PDF pages 31–32
- Current specifications & availability
- Confirm by enquiry
Features as printed in the catalogue
- Input voltage: AC 110V or 220V
- Output voltage: AC 220V or 110V
- With USB function (5V DC)
Catalogue values are historical reference information, not confirmed current specifications. Confirm the exact model, ratings, input range and certification status before ordering.
TC-B catalogue models.
| Model | Rated power | External package size | Net weight | Gross weight | Pieces per carton |
|---|---|---|---|---|---|
| TC-100B | 100W | 44.0 × 25.0 × 17.0 cm | 16.0 kg | 18.0 kg | 16 |
| TC-200B | 200W | 44.0 × 26.0 × 17.0 cm | 24.0 kg | 26.0 kg | 16 |
| TC-300B | 300W | 28.5 × 26.0 × 20.5 cm | 18.5 kg | 20.0 kg | 8 |
| TC-500B | 500W | 28.5 × 26.0 × 20.5 cm | 23.0 kg | 24.5 kg | 8 |
| TC-750B | 750W | 38.0 × 18.0 × 20.5 cm | 25.0 kg | 26.0 kg | 6 |
| TC-1000B | 1000W | 45.5 × 24.5 × 21.5 cm | 13.0 kg | 14.5 kg | 2 |
| TC-1500B | 1500W | 45.5 × 25.5 × 21.5 cm | 16.0 kg | 17.5 kg | 2 |
| TC-2000B | 2000W | 45.5 × 27.5 × 21.5 cm | 21.5 kg | 23.0 kg | 2 |
| TC-3000B | 3000W | 45.5 × 29.5 × 21.5 cm | 26.0 kg | 27.5 kg | 2 |
| TC-4000B | 4000W | 31.0 × 23.0 × 26.5 cm | 19.0 kg | 20.0 kg | 1 |
| TC-5000B | 5000W | 32.0 × 23.0 × 26.5 cm | 21.0 kg | 22.0 kg | 1 |
| TC-10000B | 10000W | 41.5 × 32.5 × 34.5 cm | 30.0 kg | 31.0 kg | 1 |
Sizes are external package sizes in cm; weights in kg; quantities are pieces per carton.
