Public address amplifier
PA table power amplifiers
Table-type public address amplifiers for cars, households, small broadcasting studios and meeting rooms, powered from AC or 12V DC with low- and high-impedance outputs.
7Catalogue models
1989Goldsource founded
1Exterior 3D models
Reconstructed exterior
Every side,
square on.
Illustrative renders reconstructed from catalogue photographs; dimensions are estimated. Appearance and configuration may vary by version.

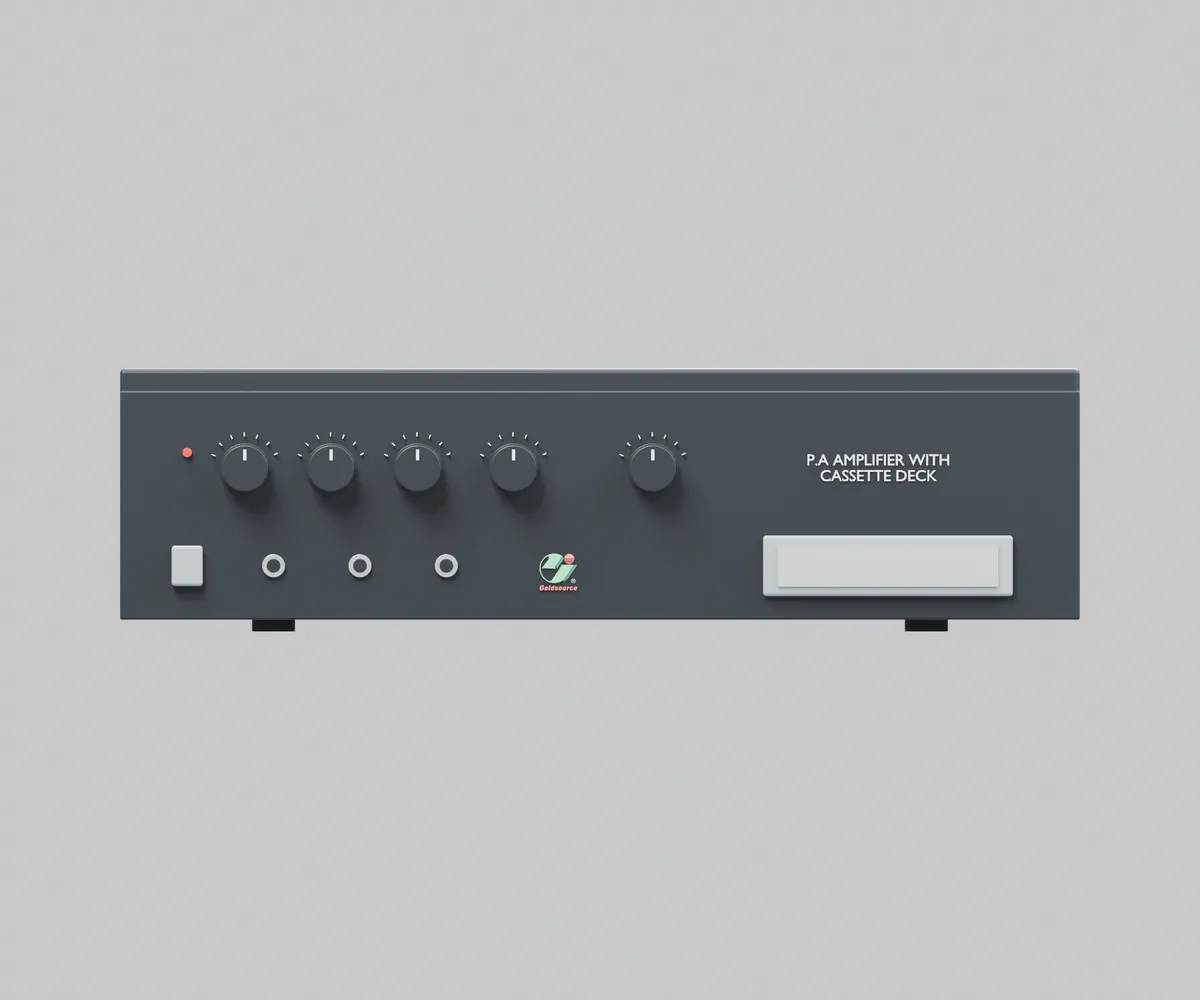

Interactive exterior
PA-650,
in the round.
Illustrative exterior model reconstructed from catalogue photographs. Appearance and configuration may vary by version.
Drag to rotate · Scroll to zoom
Illustrative exterior model. Appearance and configuration may vary by version; check against the current product specification.
Historical catalogue record
What the catalogue says.
What to confirm.
- Product category
- Public address amplifier
- Series
- PA
- Catalogue models
- 7
- Source
- Company website archive (2014)
- Current specifications & availability
- Confirm by enquiry
Features as printed in the catalogue
- Power requirement: 220V / 110V AC or 12V DC
- Low-impedance speaker outputs plus 70V / 100V line outputs on larger models
- Microphone and auxiliary inputs
Catalogue values are historical reference information, not confirmed current specifications. Confirm the exact model, ratings, input range and certification status before ordering.
PA catalogue models.
| Model | Rated output | Maximum output | Output impedance | External package size | Net / gross weight | Pieces per carton |
|---|---|---|---|---|---|---|
| PA-450 | 10W | 15W | 4Ω | 51.5 × 31.0 × 35.5 cm | 17 / 19 kg | 6 |
| PA-450S | 30W | 60W | 4–8–16Ω, 70V, 100V | 51.5 × 31.0 × 35.5 cm | 17 / 19 kg | 6 |
| PA-550 | 12W | 15W | 2×4Ω | 56.5 × 39.5 × 39.0 cm | 18 / 20 kg | 6 |
| PA-550B | 15W | 40W | 4–8Ω | 53.5 × 31.0 × 39.0 cm | 16 / 18 kg | 6 |
| PA-650 | 10W | 30W | 4–8–16Ω, 70V, 100V | 53.5 × 37.0 × 38.5 cm | 18 / 20 kg | 6 |
| PA-750 | 30W | 50W | 4–8–16Ω, 70V, 100V | 54.5 × 43.5 × 27.0 cm | 21 / 23 kg | 4 |
| PA-950 | 40W | 80W | 4–8–16Ω, 70V, 100V | 54.5 × 43.5 × 27.0 cm | 25 / 27 kg | 4 |
Sizes are external package sizes in cm; weights in kg; quantities are pieces per carton.
