Oscilloscope
DF42xx portable oscilloscopes
Two-channel 20MHz portable oscilloscopes with a rectangular CRT and internal graticule.
3Catalogue models
1989Goldsource founded
1Exterior 3D models

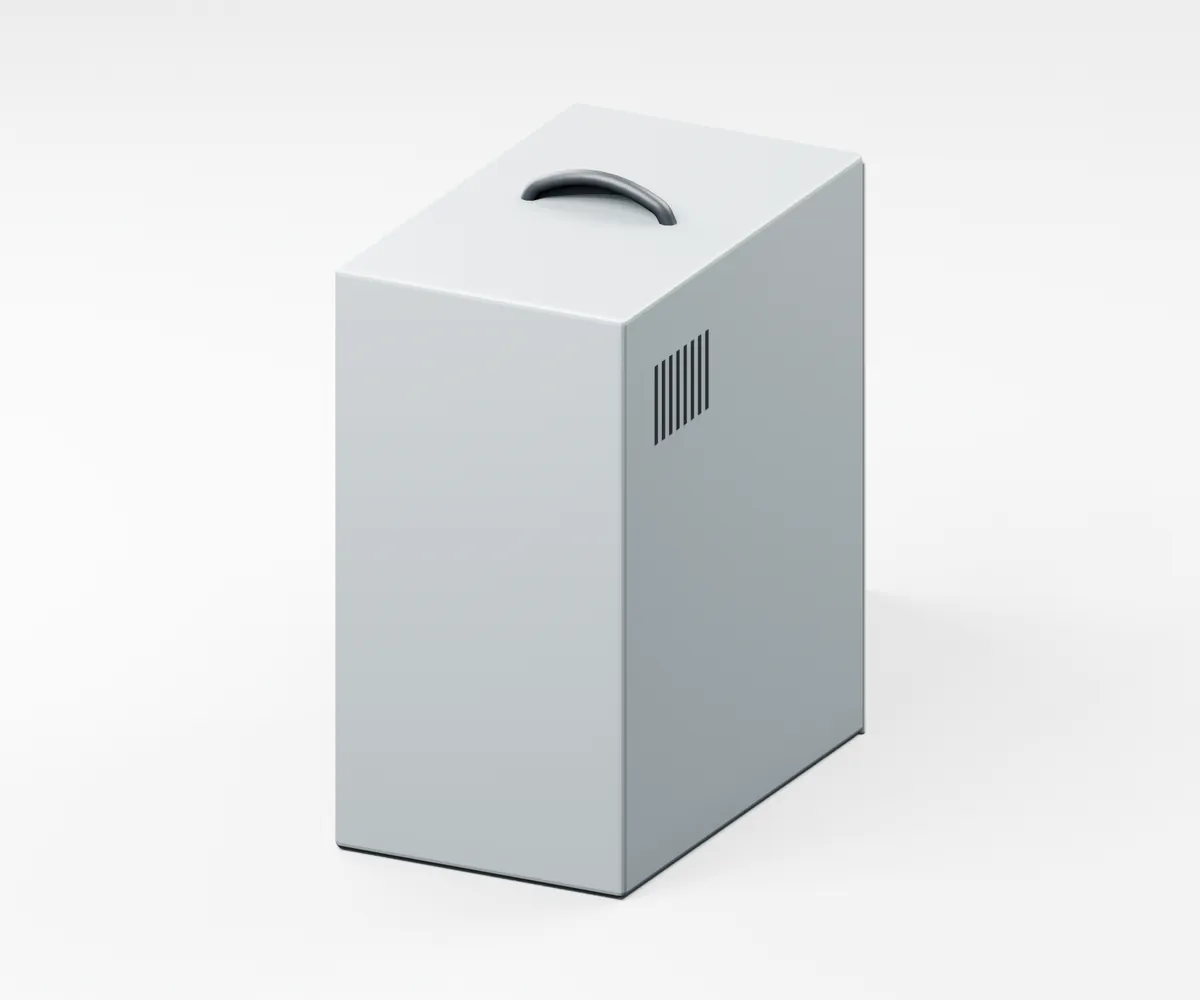

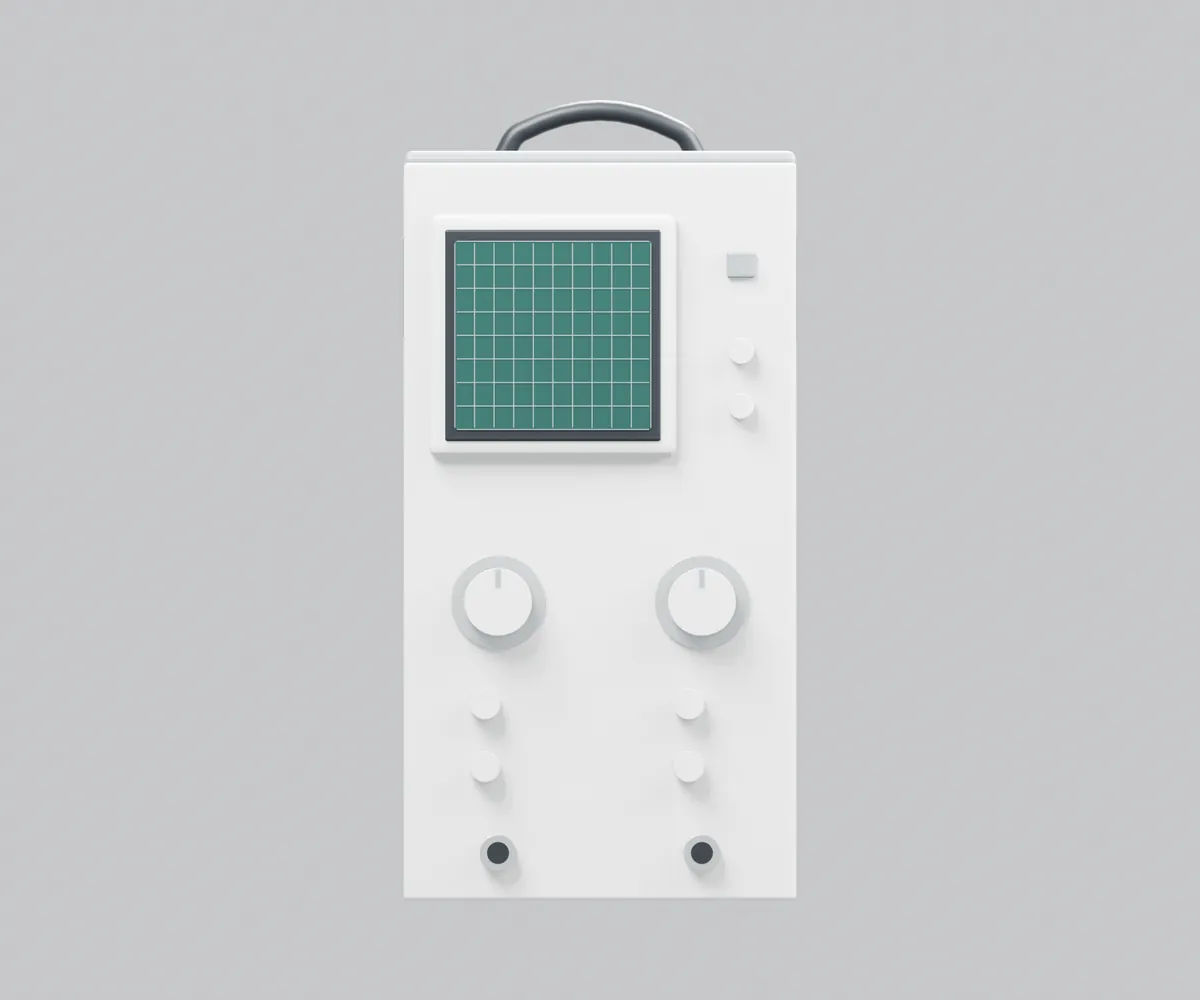

Reconstructed exterior
Every side,
square on.
Illustrative renders reconstructed from catalogue photographs; dimensions are estimated. Appearance and configuration may vary by version.
Interactive exterior
DF4245,
in the round.
Illustrative exterior model reconstructed from catalogue photographs. Appearance and configuration may vary by version.
Drag to rotate · Scroll to zoom
Illustrative exterior model. Appearance and configuration may vary by version; check against the current product specification.
Historical catalogue record
What the catalogue says.
What to confirm.
- Product category
- Oscilloscope
- Series
- DF42xx
- Catalogue models
- 3
- Source
- Company website archive (2014)
- Current specifications & availability
- Confirm by enquiry
Features as printed in the catalogue
- Y-axis bandwidth: DC to 20MHz
- Y-axis sensitivity: 5mV to 5V/div
- Sweep time: 0.2s to 0.1µs/div
- Size 327×130×377mm, 7.2kg
Catalogue values are historical reference information, not confirmed current specifications. Confirm the exact model, ratings, input range and certification status before ordering.
DF42xx catalogue models.
| Model |
|---|
| DF4245 |
| DF4246 |
| DF4320 |
Model list only; no ratings were published for this series.
