Car audio amplifier
DF5890 car audio amplifiers
Car audio amplifiers with MOSFET pulse-width-modulated power supplies, high-pass and low-pass filters on each channel, bridgeable outputs and thermal overload protection.
6Catalogue models
1989Goldsource founded
1Exterior 3D models
Reconstructed exterior
Every side,
square on.

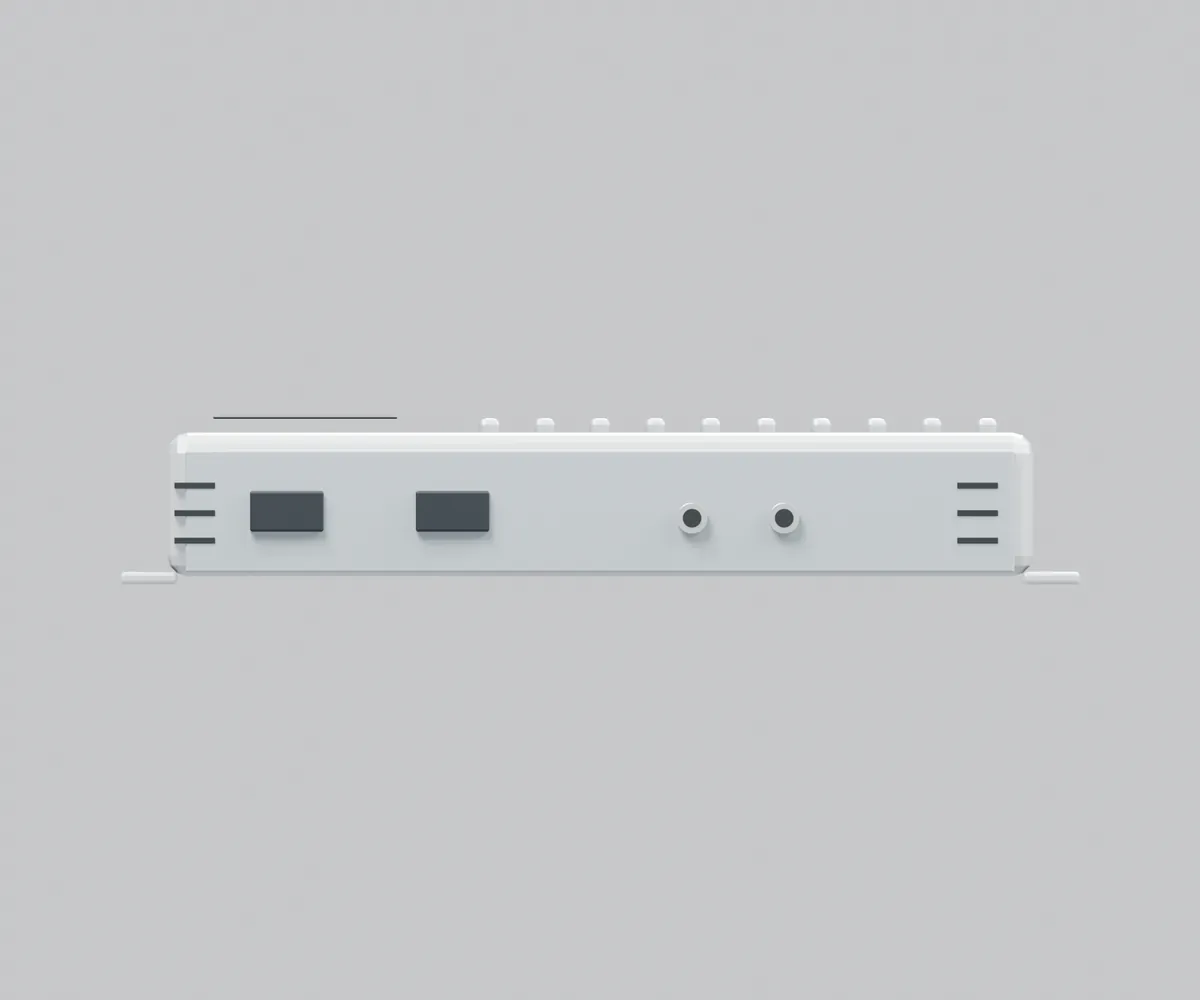

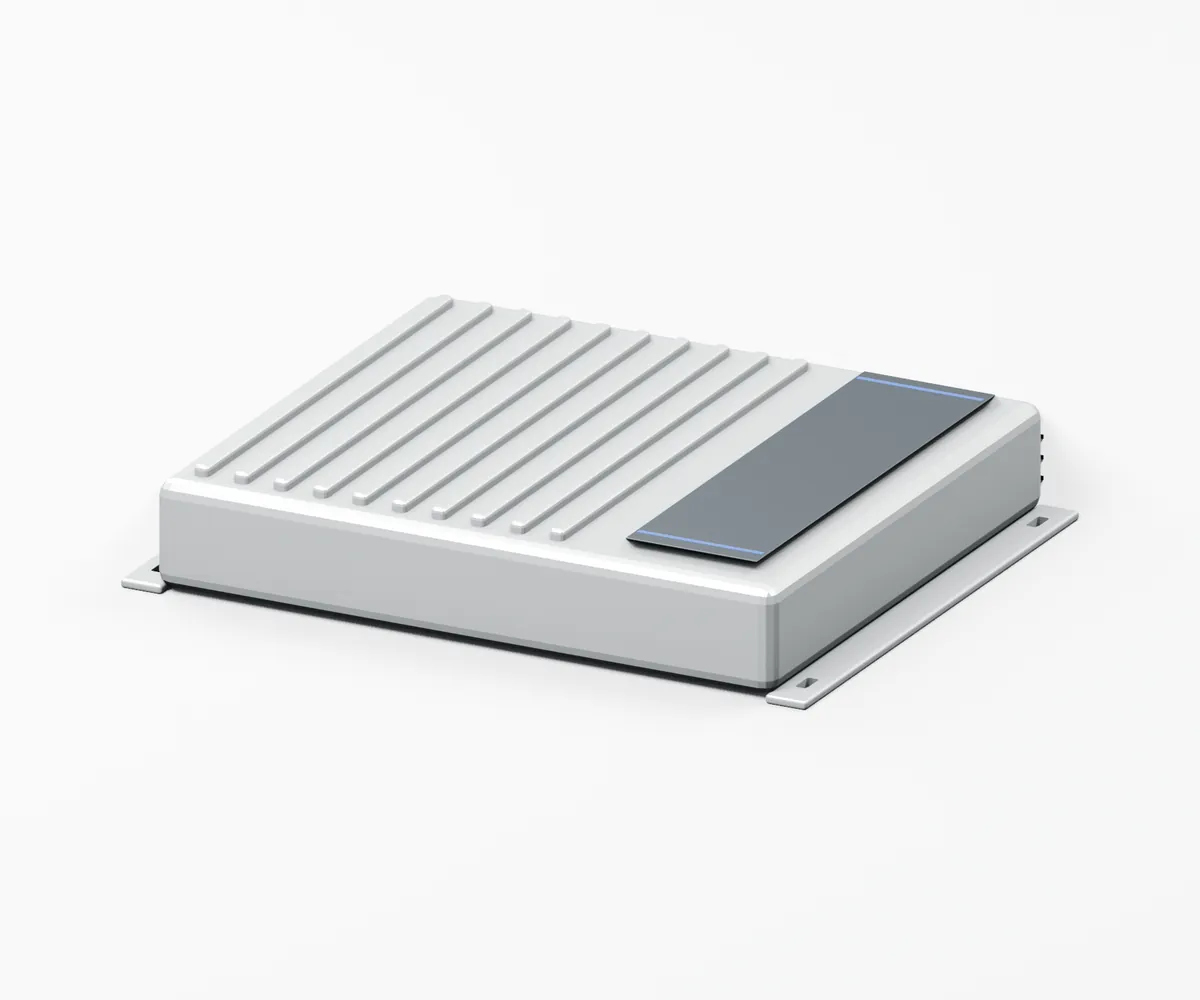

Illustrative renders reconstructed from catalogue photographs; dimensions are estimated. Appearance and configuration may vary by version.
Interactive exterior
DF5890B-2075,
in the round.
Illustrative exterior model reconstructed from catalogue photographs. Appearance and configuration may vary by version.
Drag to rotate · Scroll to zoom
Illustrative exterior model. Appearance and configuration may vary by version; check against the current product specification.
Historical catalogue record
What the catalogue says.
What to confirm.
- Product category
- Car audio amplifier
- Series
- DF5890
- Catalogue models
- 6
- Source
- Company website archive (2014)
- Current specifications & availability
- Confirm by enquiry
Features as printed in the catalogue
- Harmonic distortion: less than 0.2%
- Frequency response: 20Hz–20kHz ±1dB
- Signal-to-noise ratio: more than 80dB
- Input sensitivity: 85mV
Catalogue values are historical reference information, not confirmed current specifications. Confirm the exact model, ratings, input range and certification status before ordering.
DF5890 catalogue models.
| Model | Rated power | External package size | Net weight | Gross weight | Pieces per carton |
|---|---|---|---|---|---|
| DF5890B-2075 | 2×75W | 19.2 × 23.5 × 4.8 cm | 24 kg | 26 kg | 8 |
| DF5890B-2100 | 2×100W | 22.0 × 23.5 × 4.8 cm | 21 kg | 23 kg | 6 |
| DF5890B-2150 | 2×150W | 26.0 × 23.5 × 4.8 cm | 24.5 kg | 26 kg | 6 |
| DF5890B-4075 | 4×75W | 30.0 × 23.5 × 4.8 cm | 19 kg | 21 kg | 4 |
| DF5890B-4100 | 4×100W | 33.0 × 23.5 × 4.8 cm | 19 kg | 21 kg | 4 |
| DF5890B-4150 | 4×150W | 36.0 × 23.5 × 4.8 cm | 24 kg | 26 kg | 4 |
Sizes are external package sizes in cm; weights in kg; quantities are pieces per carton.
