AC voltage regulator
CVR / CVR-B relay-type automatic voltage regulators
Relay-type household AC voltage stabilizers with a digital or pointer display. The catalogue describes regulation of widely fluctuating mains into a general output voltage, low power consumption and a large stabilization range.
8Catalogue models
350W – 5,000WCatalogue power range
17–18Catalogue pages
1989Goldsource founded
3Exterior 3D models
Reconstructed exterior
Every side,
square on.
Illustrative renders reconstructed from catalogue photographs; dimensions are estimated. Appearance and configuration may vary by version.
Interactive exterior

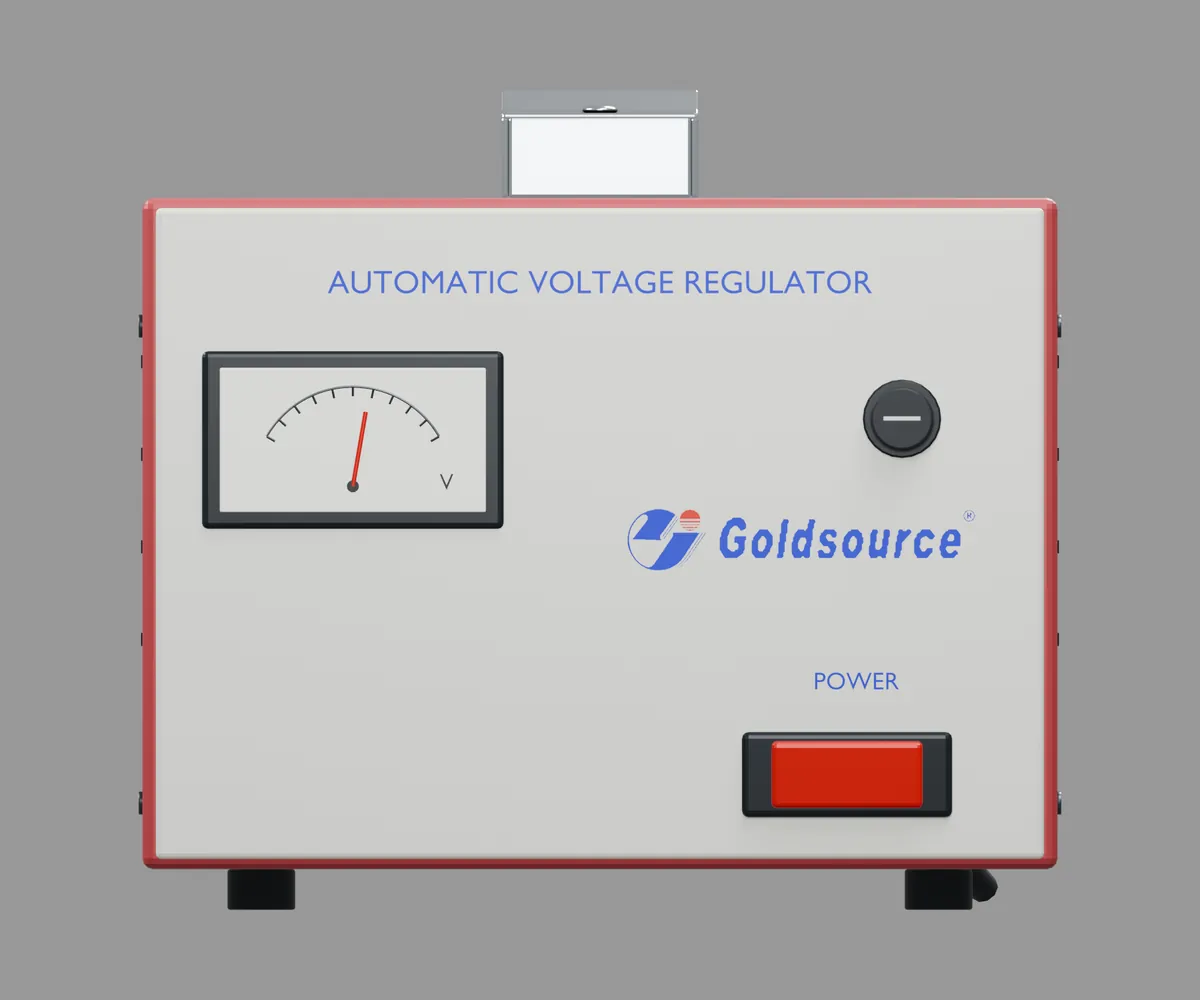

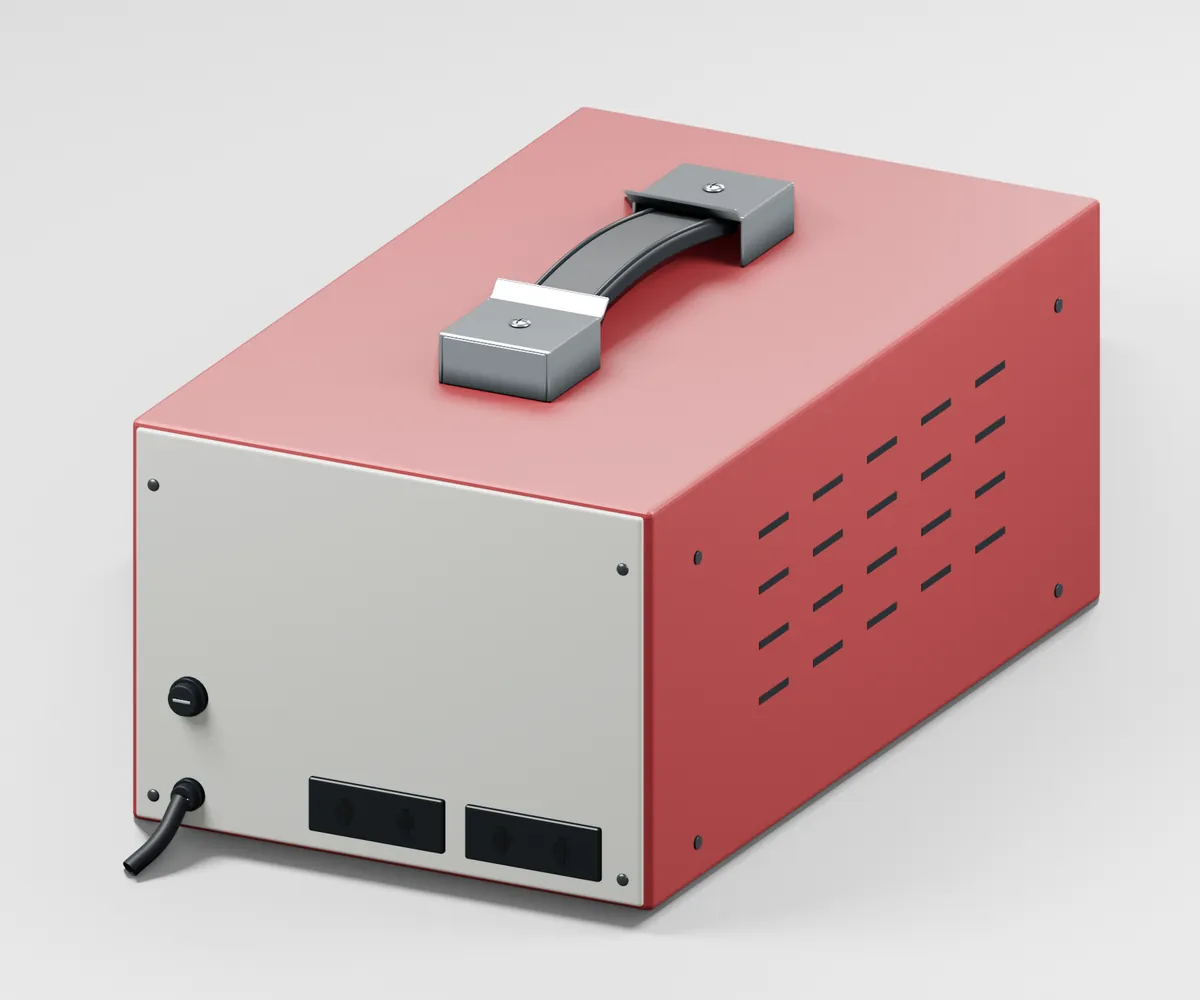

CVR-350,
in the round.
Illustrative exterior model reconstructed from catalogue photographs. Appearance and configuration may vary by version.
Drag to rotate · Scroll to zoom
Illustrative exterior model. Appearance and configuration may vary by version; check against the current product specification.
Historical catalogue record
What the catalogue says.
What to confirm.
- Product category
- AC voltage regulator
- Series
- CVR / CVR-B
- Catalogue models
- 8
- Source
- Catalogue PDF pages 17–18
- Source
- Company website archive (2014)
- Current specifications & availability
- Confirm by enquiry
Features as printed in the catalogue
- Input voltage: AC 160–250V or 80–130V
- Output voltage: AC 220V ±8% or AC 110V ±8%
- With over-current protector
- With display of output voltage
- CVR-B: digital display version
Catalogue values are historical reference information, not confirmed current specifications. Confirm the exact model, ratings, input range and certification status before ordering.
CVR / CVR-B catalogue models.
| Model | Rated power | External package size | Net weight | Gross weight | Pieces per carton |
|---|---|---|---|---|---|
| CVR-350 | 350W | 47.0 × 27.5 × 24.0 cm | 19.0 kg | 21.0 kg | 6 |
| CVR-500 | 500W | 47.0 × 27.5 × 24.0 cm | 22.0 kg | 24.5 kg | 6 |
| CVR-1000 | 1000W | 51.0 × 30.0 × 29.5 cm | 26.0 kg | 28.0 kg | 6 |
| CVR-1500 | 1500W | 35.0 × 30.0 × 30.0 cm | 21.0 kg | 22.5 kg | 4 |
| CVR-2000 | 2000W | 39.5 × 34.0 × 34.5 cm | 27.5 kg | 29.0 kg | 4 |
| CVR-3000 | 3000W | 39.5 × 34.0 × 18.5 cm | 18.0 kg | 19.0 kg | 2 |
| CVR-4000 | 4000W | 48.5 × 38.5 × 22.0 cm | 24.0 kg | 25.0 kg | 2 |
| CVR-5000 | 5000W | 48.5 × 38.5 × 22.0 cm | 27.0 kg | 28.0 kg | 2 |
Sizes are external package sizes in cm; weights in kg; quantities are pieces per carton.
