AC voltage regulator
SVC-WS / WD low-profile servo voltage regulators
Servo motor-type household AC voltage stabilizers. The catalogue describes low power consumption, reliable work and high accuracy of stabilization, intended for regions where the mains voltage fluctuates widely.
7Catalogue models
500W – 3,000WCatalogue power range
11–12Catalogue pages
1989Goldsource founded
2Exterior 3D models
Reconstructed exterior
Every side,
square on.
Illustrative renders reconstructed from catalogue photographs; dimensions are estimated. Appearance and configuration may vary by version.

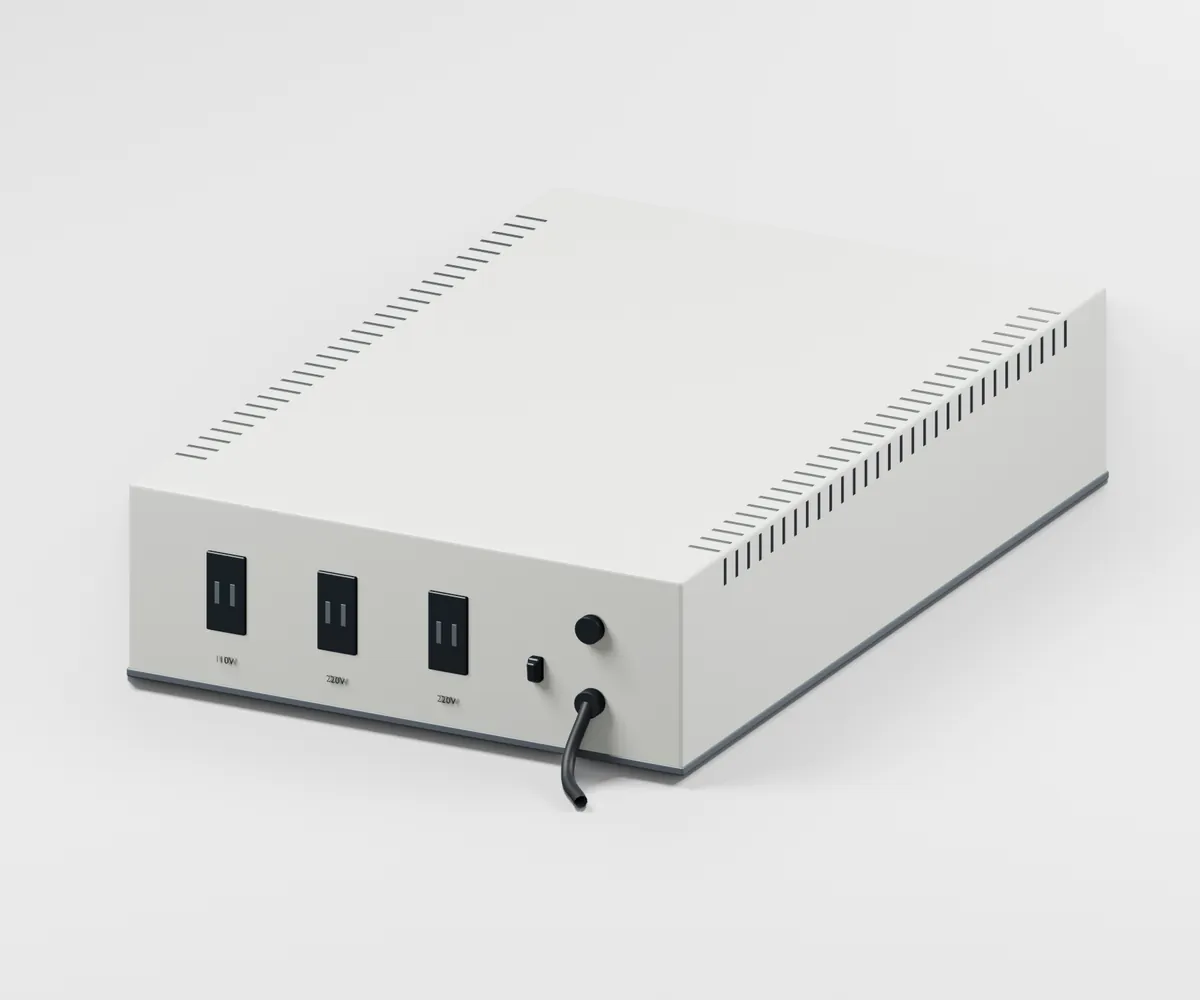

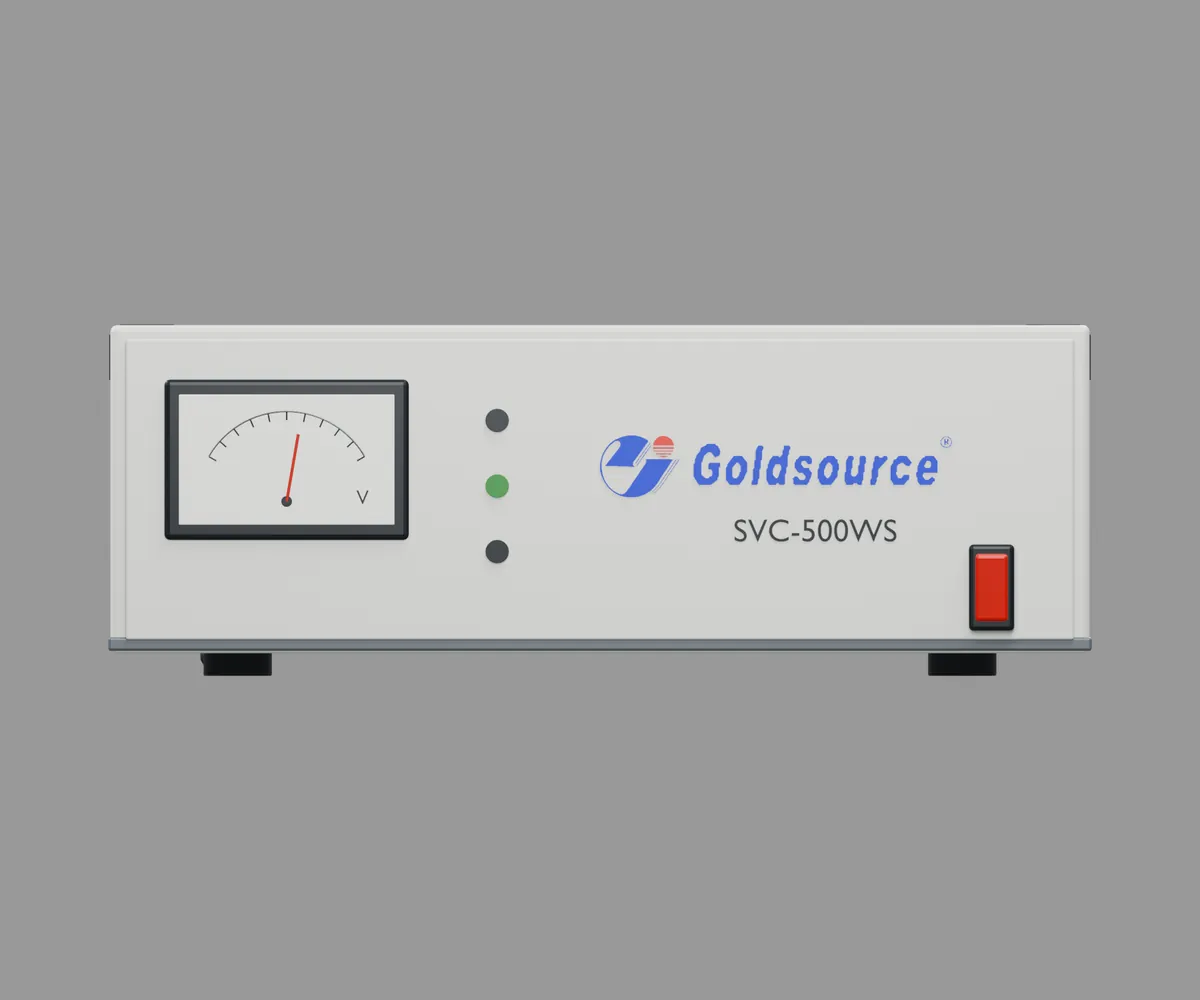

Interactive exterior
SVC-500WS,
in the round.
Illustrative exterior model reconstructed from catalogue photographs. Appearance and configuration may vary by version.
Drag to rotate · Scroll to zoom
Illustrative exterior model. Appearance and configuration may vary by version; check against the current product specification.
Historical catalogue record
What the catalogue says.
What to confirm.
- Product category
- AC voltage regulator
- Series
- SVC-WS / WD
- Catalogue models
- 7
- Source
- Catalogue PDF pages 11–12
- Source
- DIYTrade listing (2025)
- Current specifications & availability
- Confirm by enquiry
Features as printed in the catalogue
- Input voltage: AC 50–130V or 160–250V
- Output voltage: AC 220V / 110V ±2%
- With over-current protector
- With output voltage indication
Catalogue values are historical reference information, not confirmed current specifications. Confirm the exact model, ratings, input range and certification status before ordering.
SVC-WS / WD catalogue models.
| Model | Rated power | External package size | Net weight | Gross weight | Pieces per carton |
|---|---|---|---|---|---|
| SVC-500WS | 500W | 48.0 × 36.5 × 27.5 cm | 13.0 kg | 14.0 kg | 4 |
| SVC-1000WS | 1000W | 52.0 × 37.0 × 29.5 cm | 17.5 kg | 18.5 kg | 4 |
| SVC-1500WS | 1500W | 41.5 × 32.5 × 34.5 cm | 23.5 kg | 24.5 kg | 4 |
| SVC-2000WS | 2000W | 32.5 × 25.0 × 34.5 cm | 15.0 kg | 16.0 kg | 2 |
| SVC-3000WS | 3000W | 32.5 × 25.0 × 34.5 cm | 18.0 kg | 19.0 kg | 2 |
| SVC-500WD | 500W | 41.5 × 32.5 × 20.0 cm | 12.5 kg | 13.5 kg | 4 |
| SVC-1000WD | 1000W | 45.5 × 33.5 × 22.0 cm | 17.0 kg | 18.0 kg | 4 |
Sizes are external package sizes in cm; weights in kg; quantities are pieces per carton.
