AC voltage regulator
AVR-B / S relay-type automatic voltage regulators
Relay-type household AC voltage stabilizers with a wide input range. The catalogue describes small dimensions, light weight, small distortion of the output waveform and quick reaction.
14Catalogue models
500W – 10,000WCatalogue power range
13–14Catalogue pages
1989Goldsource founded
4Exterior 3D models
Reconstructed exterior
Every side,
square on.
Illustrative renders reconstructed from catalogue photographs; dimensions are estimated. Appearance and configuration may vary by version.
Interactive exterior

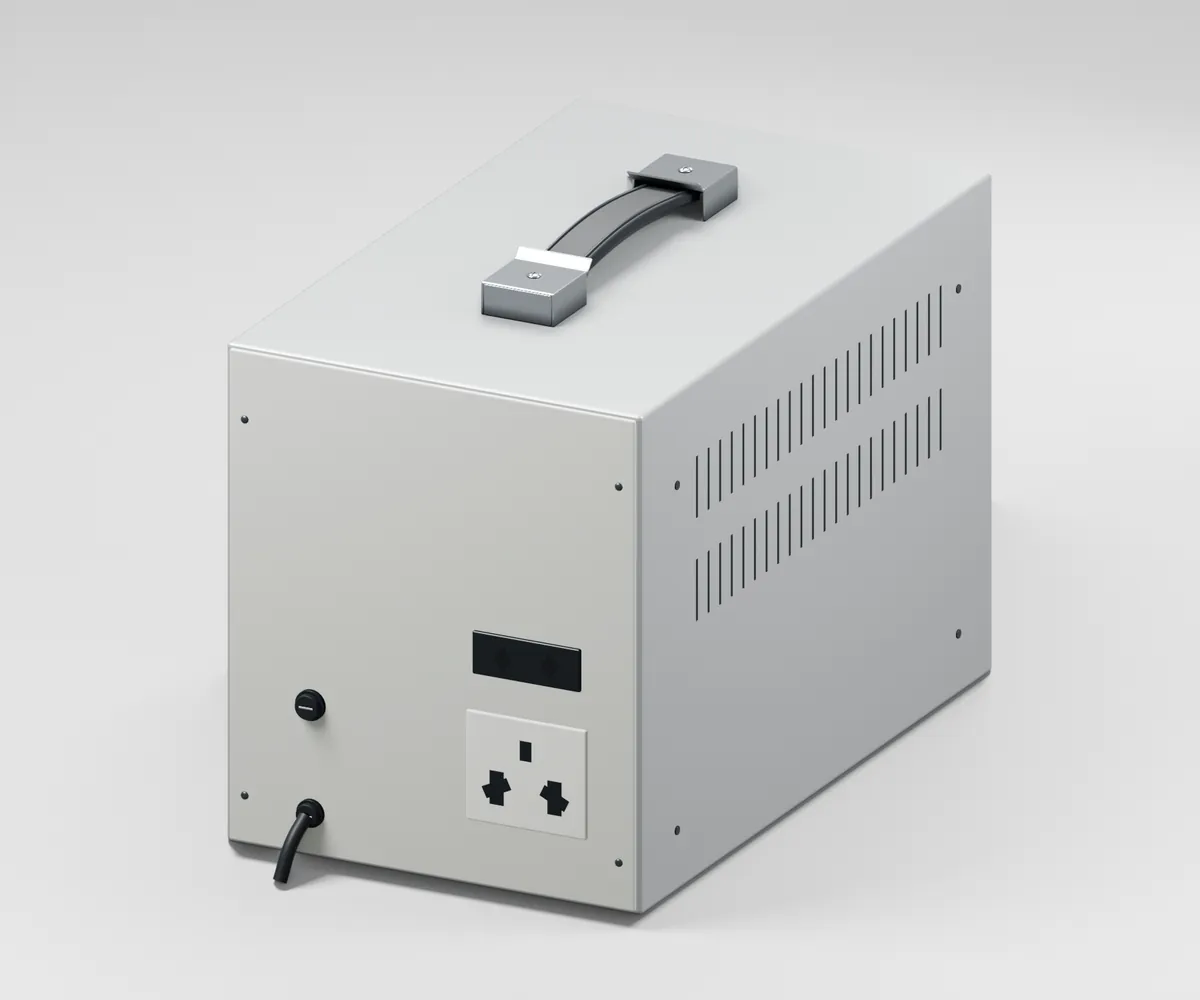

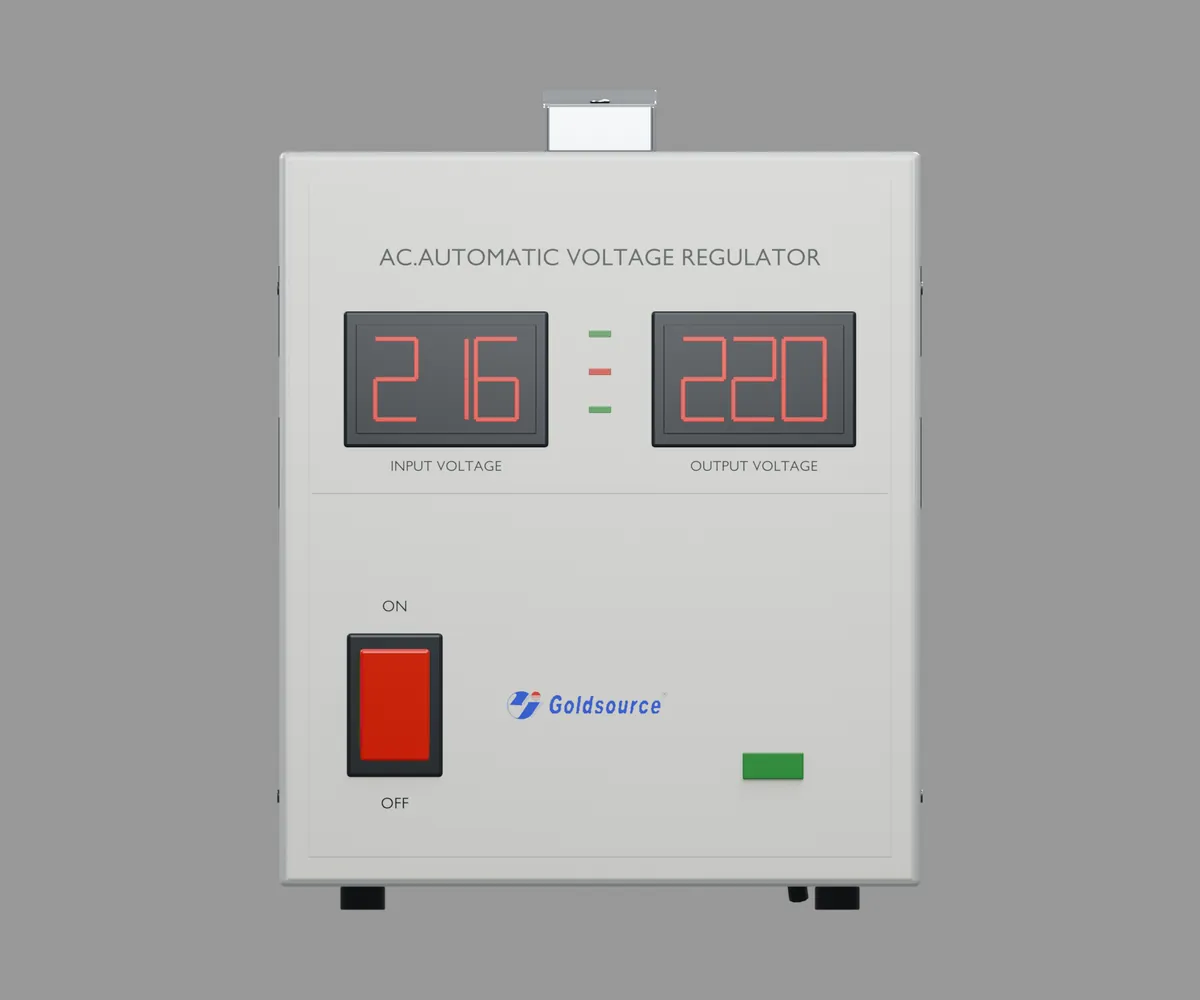

AVR-500B,
in the round.
Illustrative exterior model reconstructed from catalogue photographs. Appearance and configuration may vary by version.
Drag to rotate · Scroll to zoom
Illustrative exterior model. Appearance and configuration may vary by version; check against the current product specification.
Historical catalogue record
What the catalogue says.
What to confirm.
- Product category
- AC voltage regulator
- Series
- AVR-B / S
- Catalogue models
- 14
- Source
- Catalogue PDF pages 13–14
- Source
- Company website archive (2014)
- Current specifications & availability
- Confirm by enquiry
Features as printed in the catalogue
- Input voltage: AC 140–250V 50Hz / 60Hz
- Output voltage: AC 220V ±8%
- With 3-second / 3-minute delay function
- With low / over-voltage protection
- AVR-B: digital display; AVR-S: pointer meter
Catalogue values are historical reference information, not confirmed current specifications. Confirm the exact model, ratings, input range and certification status before ordering.
AVR-B / S catalogue models.
| Model | Rated power | External package size | Net weight | Gross weight | Pieces per carton |
|---|---|---|---|---|---|
| AVR-500B | 500W | 39.0 × 32.5 × 47.0 cm | 16.0 kg | 18.0 kg | 4 |
| AVR-1000B | 1000W | 39.0 × 32.5 × 47.0 cm | 19.0 kg | 21.0 kg | 4 |
| AVR-1500B | 1500W | 39.0 × 32.5 × 24.5 cm | 14.5 kg | 16.0 kg | 2 |
| AVR-2000B | 2000W | 39.0 × 32.5 × 24.5 cm | 18.5 kg | 20.0 kg | 2 |
| AVR-3000B | 3000W | 59.5 × 43.5 × 37.0 cm | 23.5 kg | 15.0 kg | 2 |
| AVR-5000B | 5000W | 59.5 × 43.5 × 37.0 cm | 29.0 kg | 31.0 kg | 2 |
| AVR-500S | 500W | 54.5 × 31.0 × 20.0 cm | 14.0 kg | 15.0 kg | 4 |
| AVR-1000S | 1000W | 54.5 × 31.0 × 20.0 cm | 17.0 kg | 18.0 kg | 4 |
| AVR-1500S | 1500W | 31.0 × 28.5 × 20.0 cm | 11.0 kg | 12.0 kg | 2 |
| AVR-2000S | 2000W | 32.5 × 32.0 × 23.0 cm | 14.0 kg | 15.0 kg | 2 |
| AVR-3000S | 3000W | 32.5 × 32.0 × 23.0 cm | 18.5 kg | 19.5 kg | 2 |
| AVR-5000S | 5000W | 59.5 × 43.5 × 37.0 cm | 29.0 kg | 31.0 kg | 2 |
| AVR-7500S | 7500W | 47.0 × 30.0 × 35.5 cm | 23.0 kg | 24.0 kg | 1 |
| AVR-10000S | 10000W | 47.0 × 30.0 × 35.5 cm | 24.5 kg | 25.5 kg | 1 |
Sizes are external package sizes in cm; weights in kg; quantities are pieces per carton.
