AC/DC adaptor
GS / MEE universal AC/DC adaptors
Small multi-position AC/DC adaptors with a selectable DC output voltage and a set of general connecting plugs for small household appliances and portable office equipment.
10Catalogue models
1989Goldsource founded
7Exterior 3D models
Reconstructed exterior
Every side,
square on.

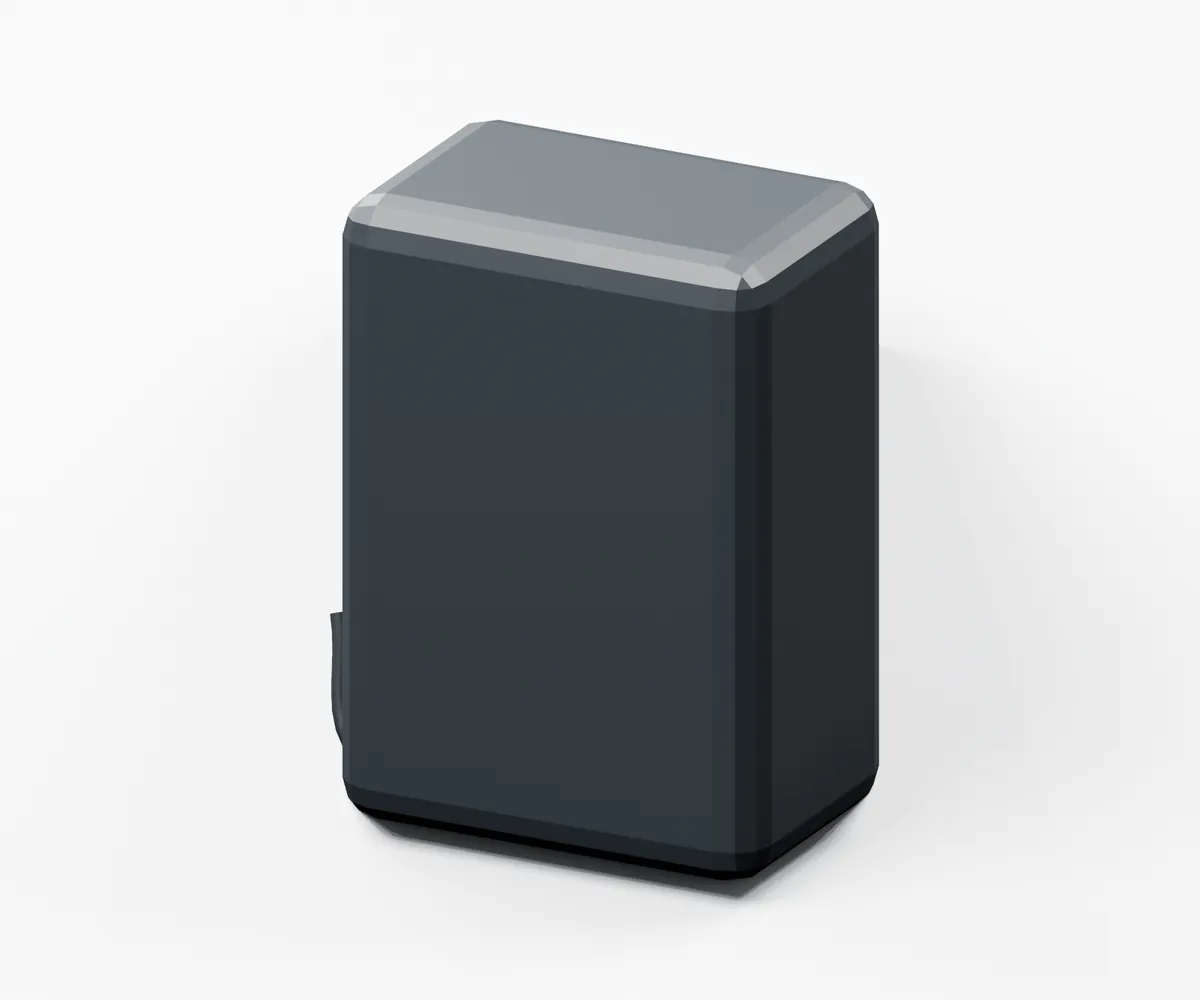

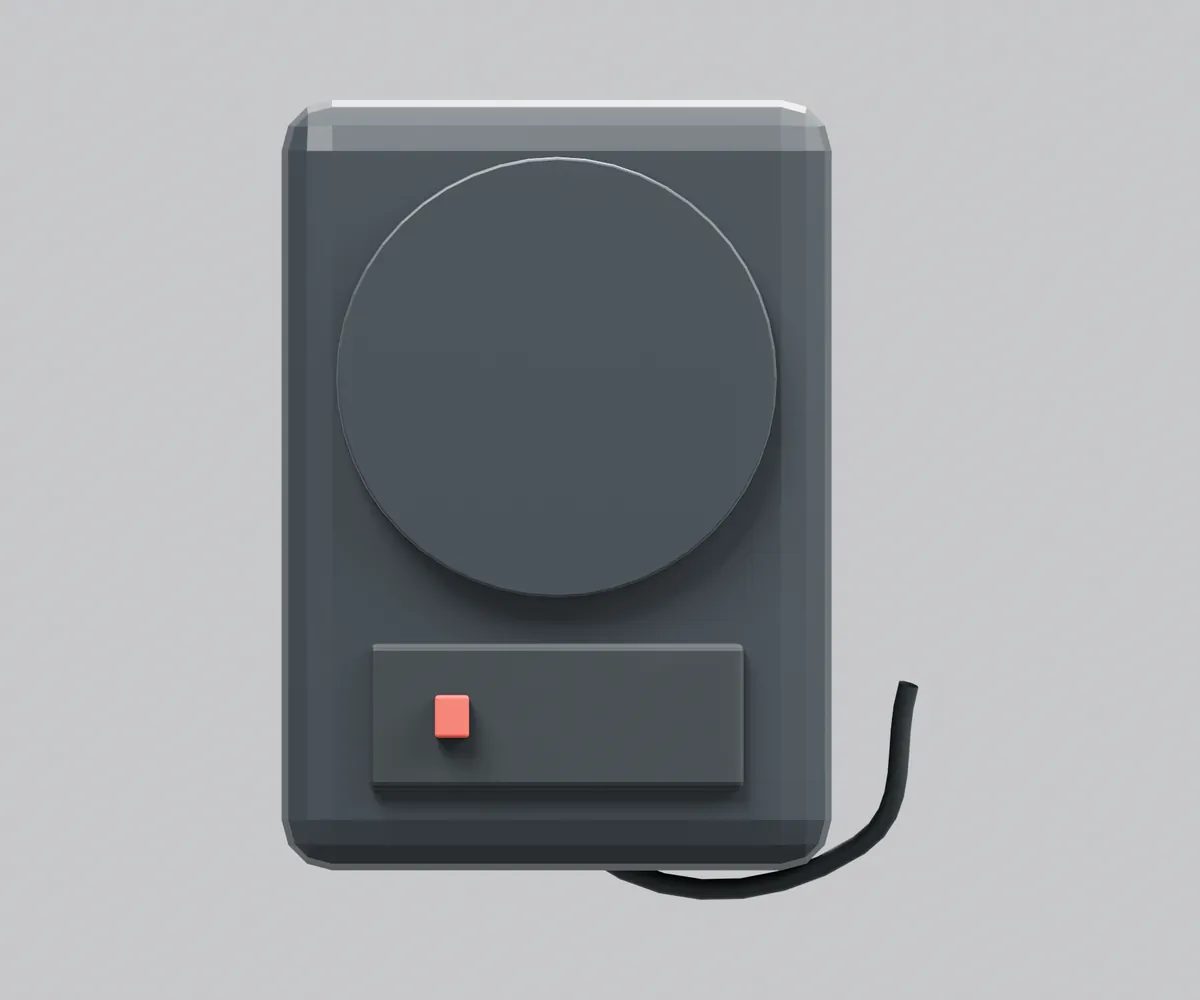

Illustrative renders reconstructed from catalogue photographs; dimensions are estimated. Appearance and configuration may vary by version.
Interactive exterior
GS-300,
in the round.
Illustrative exterior model reconstructed from catalogue photographs. Appearance and configuration may vary by version.
Drag to rotate · Scroll to zoom
Illustrative exterior model. Appearance and configuration may vary by version; check against the current product specification.
Historical catalogue record
What the catalogue says.
What to confirm.
- Product category
- AC/DC adaptor
- Series
- GS / MEE
- Catalogue models
- 10
- Source
- Company website archive (2014)
- Source
- DIYTrade listing (2025)
- Current specifications & availability
- Confirm by enquiry
Features as printed in the catalogue
- Input voltage: AC 220V 50Hz
- Multi-position DC output with output voltage selector switch
- Over 6 kinds of general connecting plugs
- MTS-1201 listed on DIYTrade
Catalogue values are historical reference information, not confirmed current specifications. Confirm the exact model, ratings, input range and certification status before ordering.
GS / MEE catalogue models.
| Model | Output | Output current | External package size | Net / gross weight | Pieces per carton |
|---|---|---|---|---|---|
| GS-300 | 1.5–3–4.5–6–7.5–9–12V DC | 300mA | 42.0 × 28.5 × 30.5 cm | 20 / 21.5 kg | 100 |
| GS-500 | 3–4.5–6–7.5–9–12V DC | 500mA | 42.0 × 28.5 × 30.5 cm | 23.5 / 25 kg | 100 |
| GS-1000 | 1.5–3–4.5–6–7.5–9–12V DC | 1000mA | 56.0 × 37.0 × 18.0 cm | 19 / 21 kg | 50 |
| GS-3196 | 1.5–3–4.5–6–7.5–9–12V DC | 1000mA | 35.5 × 25.5 × 35.0 cm | 15.5 / 17 kg | 20 |
| MEE-350 | 1.5–3–4.5–6–9–12V DC | 500mA | 40.5 × 25.5 × 33.0 cm | 25.5 / 27 kg | 100 |
| MEE-380T | 9–12V DC | 300mA | 45.0 × 38.0 × 23.5 cm | 25.5 / 27 kg | 100 |
| MEE-500 | 1.5–3–4.5–6–7.5–9–12V DC | 500mA | 45.5 × 28.0 × 31.0 cm | 28.5 / 30 kg | 100 |
| MEE-480T | 9–12V DC | 500mA | 47.5 × 38.0 × 23.5 cm | 28.5 / 30 kg | 100 |
| MEE-512S | 1.5–3–4.5–6–7.5–9–12V DC | 500mA | 47.5 × 40.0 × 24.0 cm | 28.5 / 30 kg | 100 |
| MTS-1201 | — | — | — | — | — |
Sizes are external package sizes in cm; weights in kg; quantities are pieces per carton.
