DC regulated power supply
DF176x economic 13.8V DC regulated power supplies
Linear regulated DC power supplies that convert the mains into 13.8V DC, designed for small household transceivers, vehicle-mounted mobile equipment and portable equipment.
10Catalogue models
45–46Catalogue pages
1989Goldsource founded
3Exterior 3D models

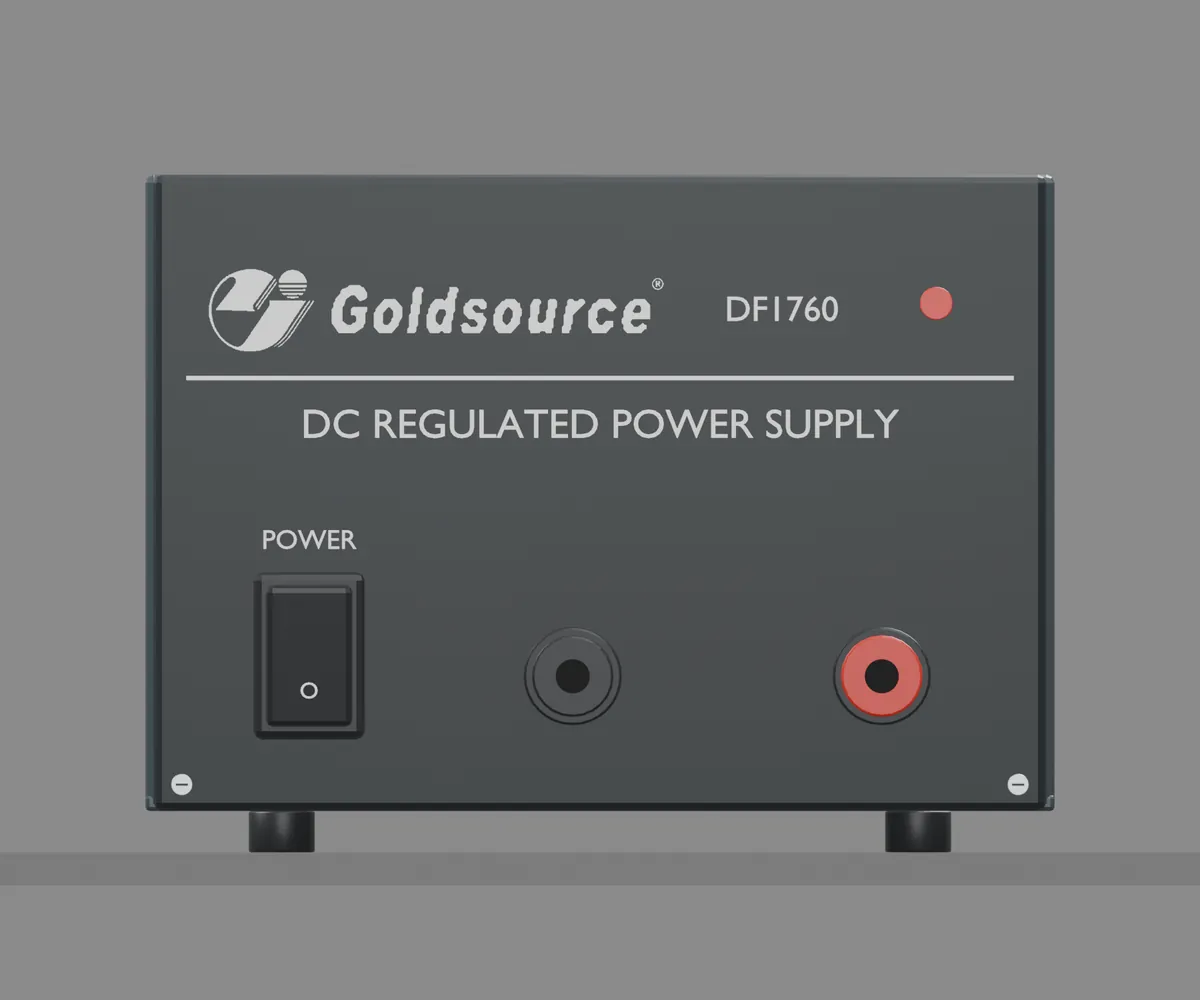

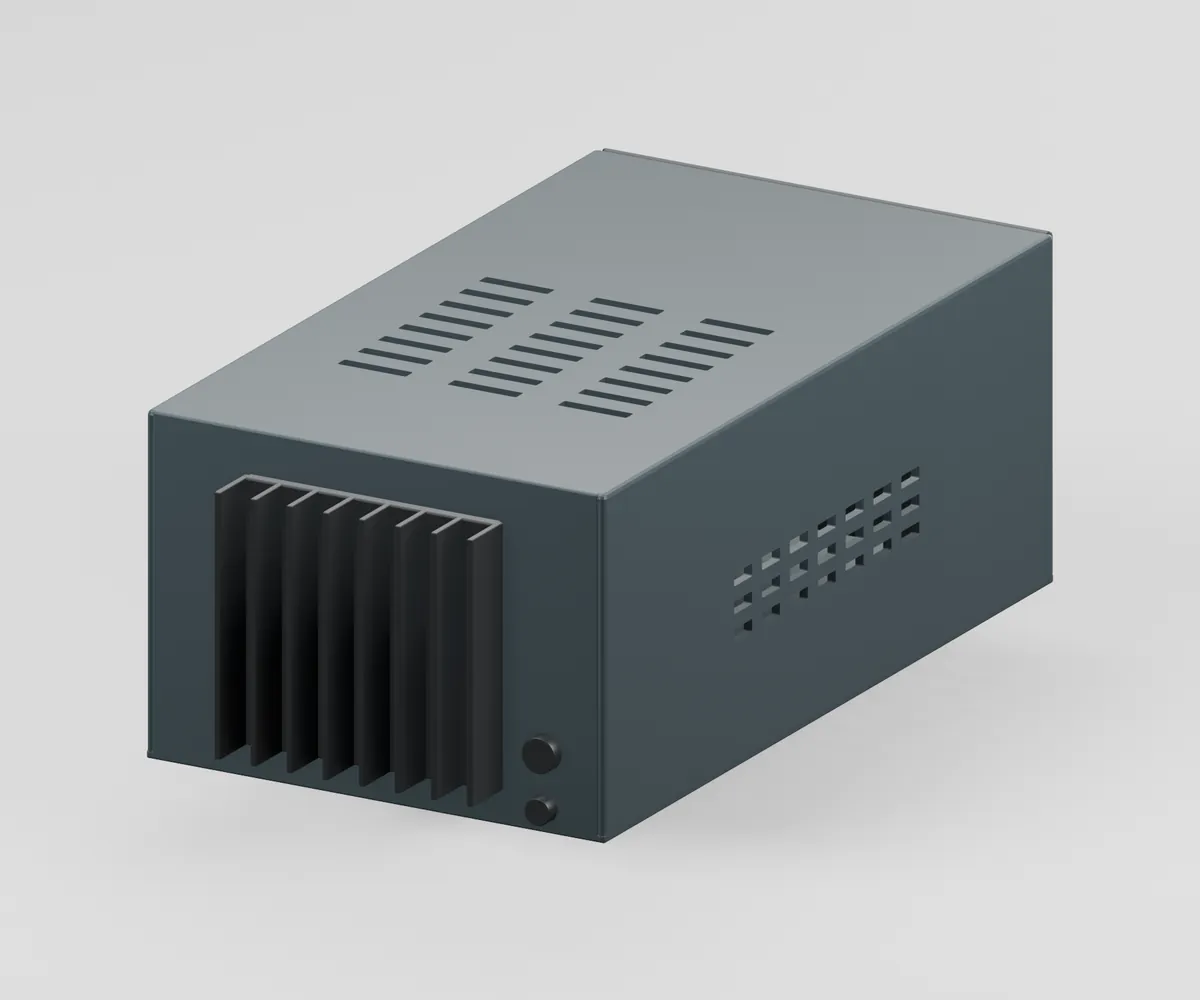

Reconstructed exterior
Every side,
square on.
Illustrative renders reconstructed from catalogue photographs; dimensions are estimated. Appearance and configuration may vary by version.
Interactive exterior
DF1760,
in the round.
Illustrative exterior model reconstructed from catalogue photographs. Appearance and configuration may vary by version.
Drag to rotate · Scroll to zoom
Illustrative exterior model. Appearance and configuration may vary by version; check against the current product specification.
Historical catalogue record
What the catalogue says.
What to confirm.
- Product category
- DC regulated power supply
- Series
- DF176x
- Catalogue models
- 10
- Source
- Catalogue PDF pages 45–46
- Source
- Company website archive (2014)
- Source
- DIYTrade listing (2025)
- Current specifications & availability
- Confirm by enquiry
Features as printed in the catalogue
- Input voltage: AC 110V or 220V
- Output voltage: 13.8V DC
- 10% load regulation; 5% voltage regulation
- Current limit or short-circuit protection for the DC output
- Current limit protector for the AC input
- One hour continuous working time
Catalogue values are historical reference information, not confirmed current specifications. Confirm the exact model, ratings, input range and certification status before ordering.
DF176x catalogue models.
| Model | Output current | Surge current | Ripple voltage | External package size | Net / gross weight | Pieces per carton |
|---|---|---|---|---|---|---|
| DF1760 | 2A | 3A | 100mV | 44.5 × 25.5 × 19.5 cm | 13 / 15 kg | 8 |
| DF1761 | 3A | 5A | 100mV | 44.5 × 25.5 × 19.5 cm | 15 / 16 kg | 8 |
| DF1762 | 5A | 7A | 100mV | 32.5 × 30.5 × 27.5 cm | 16 / 17 kg | 4 |
| DF1763 | 10A | 12A | 120mV | 32.5 × 30.5 × 27.5 cm | 17 / 18 kg | 4 |
| DF1764 | 15A | 17A | 120mV | 44.5 × 33.5 × 16.0 cm | 11.5 / 12.5 kg | 2 |
| DF1765 | 20A | 22A | 150mV | 44.5 × 33.5 × 16.0 cm | 13.5 / 14.5 kg | 2 |
| DF1766 | 25A | 27A | 150mV | 41.5 × 29.5 × 22.5 cm | 10 / 11 kg | 1 |
| DF1767 | 30A | 32A | 150mV | 41.5 × 29.5 × 22.5 cm | 11 / 12 kg | 1 |
| DF1768 | 40A | 42A | 200mV | 45.0 × 38.5 × 24.5 cm | 17 / 18 kg | 1 |
| DF1769 | 50A | 53A | 200mV | 45.0 × 38.5 × 24.5 cm | 18.5 / 19.5 kg | 1 |
Sizes are external package sizes in cm; weights in kg; quantities are pieces per carton.
