Educational power supply

CP educational power supplies

Educational AC/DC power supplies for schools and laboratories with stepped AC and DC outputs, 0.5% output accuracy and automatic over-current protection.

CP educational power supplies, illustrative render

CP series

CP

10 catalogue models

Representative model: CP4A

  • Input voltage: AC 220V ±10% 50Hz
  • Output: AC 0–13V and DC 0–13V in 1V steps
  • Output accuracy: 0.5%
  • Automatic over-current protection
Request a Quote View in 3D
10Catalogue models
61–62Catalogue pages
1989Goldsource founded
4Exterior 3D models

Reconstructed exterior

Every side,
square on.

CP4A, illustrative three-quarter view
Illustrative render

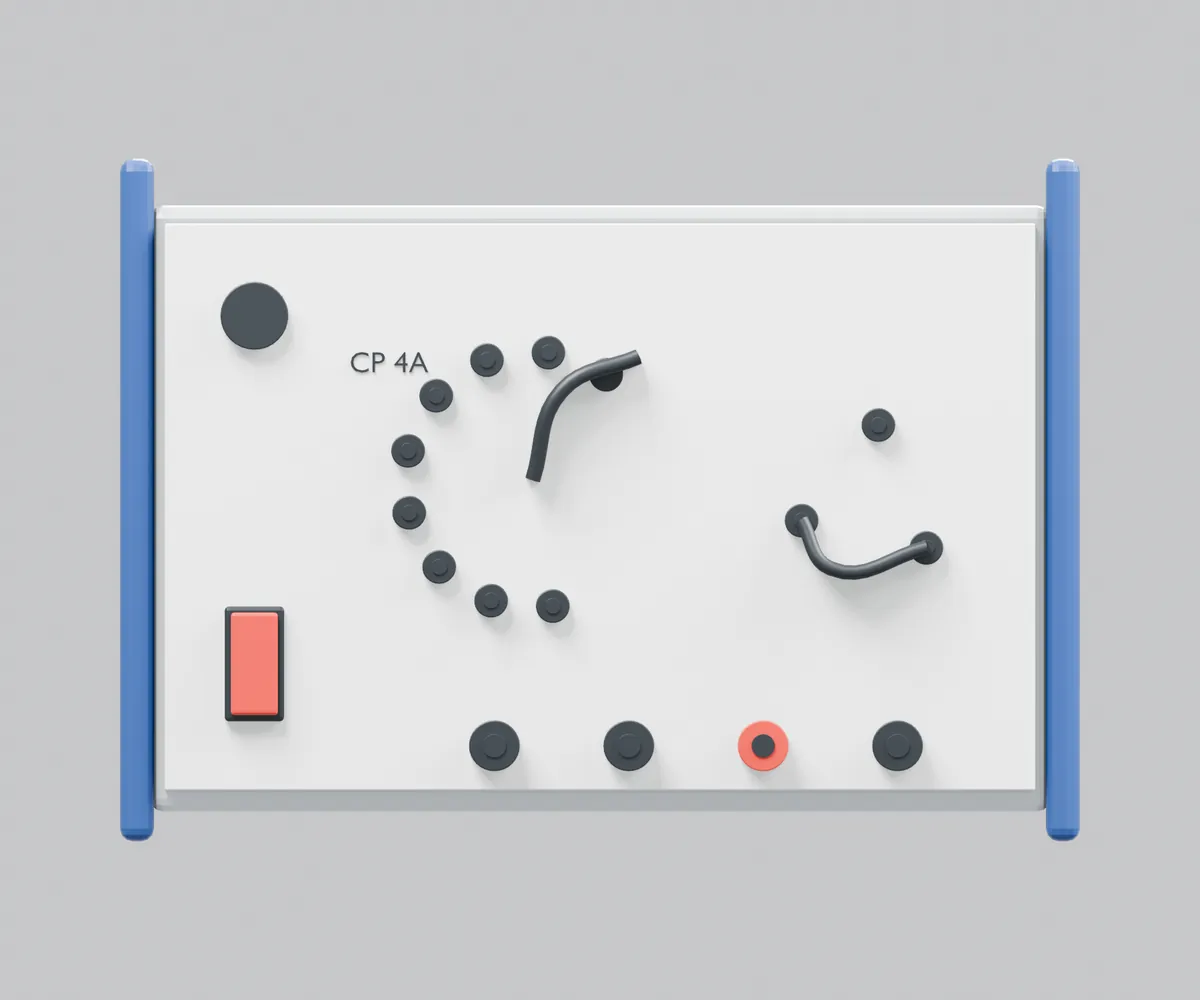

CP4A, illustrative front view
Front view

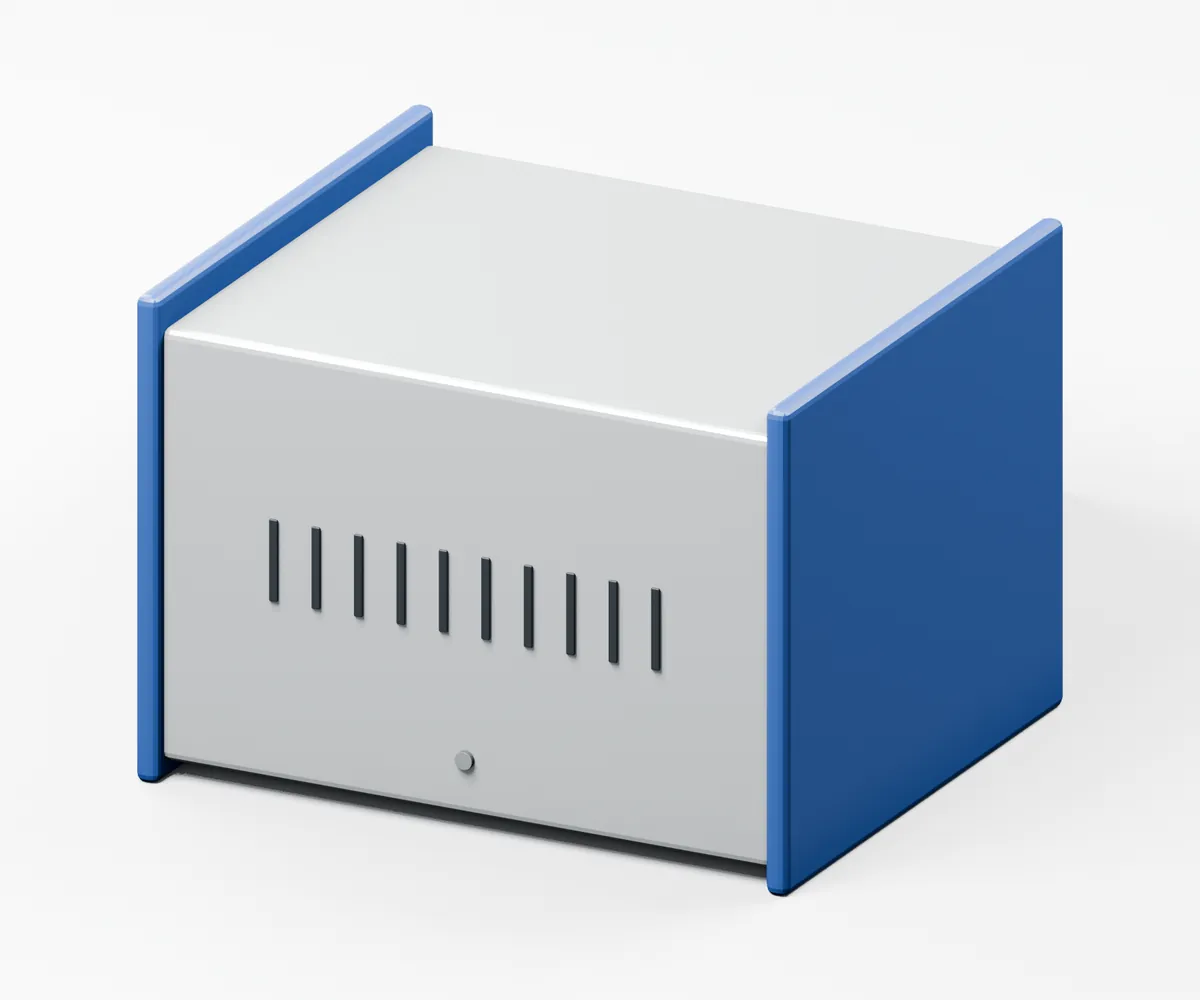

CP4A, illustrative rear view
Rear view

Illustrative renders reconstructed from catalogue photographs; dimensions are estimated. Appearance and configuration may vary by version.

Interactive exterior

CP4A,
in the round.

Illustrative exterior model reconstructed from catalogue photographs. Appearance and configuration may vary by version.

CP4A illustrative exterior render

Drag to rotate · Scroll to zoom

Illustrative exterior model. Appearance and configuration may vary by version; check against the current product specification.

Historical catalogue record

What the catalogue says.
What to confirm.

Product category
Educational power supply
Series
CP
Catalogue models
10
Source
Catalogue PDF pages 61–62
Source
Company website archive (2014)
Current specifications & availability
Confirm by enquiry

Features as printed in the catalogue

  • Input voltage: AC 220V ±10% 50Hz
  • Output: AC 0–13V and DC 0–13V in 1V steps
  • Output accuracy: 0.5%
  • Automatic over-current protection

Catalogue values are historical reference information, not confirmed current specifications. Confirm the exact model, ratings, input range and certification status before ordering.

Request current documentation

Read the catalogue pages

CP catalogue models.

ModelOutput currentExternal package sizeWeightPieces per carton
CP4A4A50.5 × 48.0 × 20.0 cm16.0 kg4
CP6A6A50.5 × 48.0 × 20.0 cm17.0 kg4
CP8A8A50.5 × 48.0 × 20.0 cm18.0 kg4
CP10A10A50.5 × 48.0 × 20.0 cm19.0 kg4
CP4AB4A50.5 × 48.0 × 20.0 cm16.0 kg4
CP6AB6A50.5 × 48.0 × 20.0 cm17.0 kg4
CP8AB8A50.5 × 48.0 × 20.0 cm18.0 kg4
CP10AB10A50.5 × 48.0 × 20.0 cm19.0 kg4
CP68601–5A46.0 × 27.0 × 42.0 cm15.5 kg2
CP68706A46.0 × 27.0 × 42.0 cm20.0 kg2

Sizes are external package sizes in cm; weights in kg; quantities are pieces per carton.
